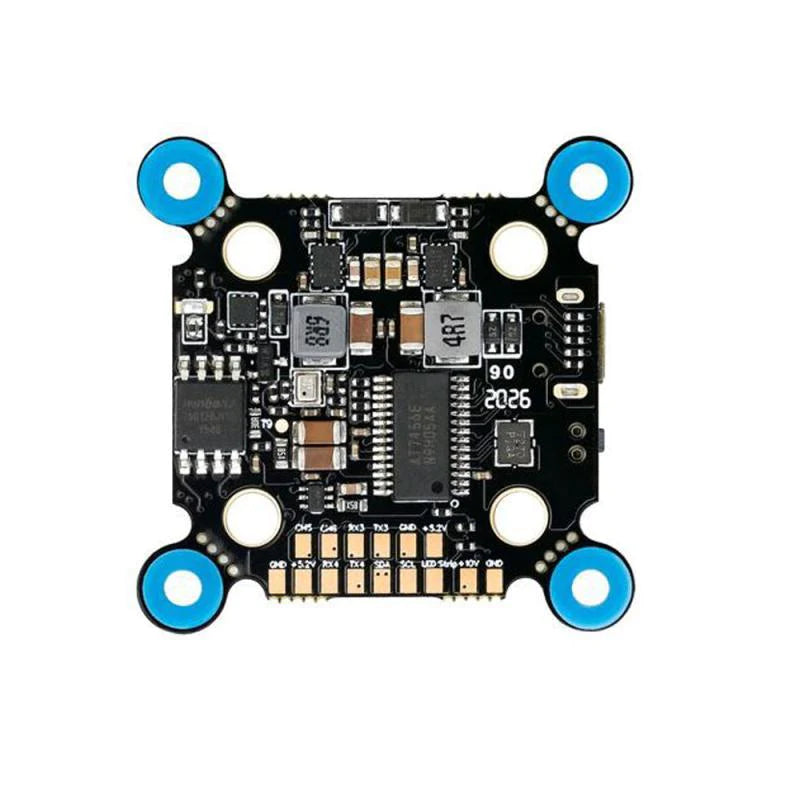

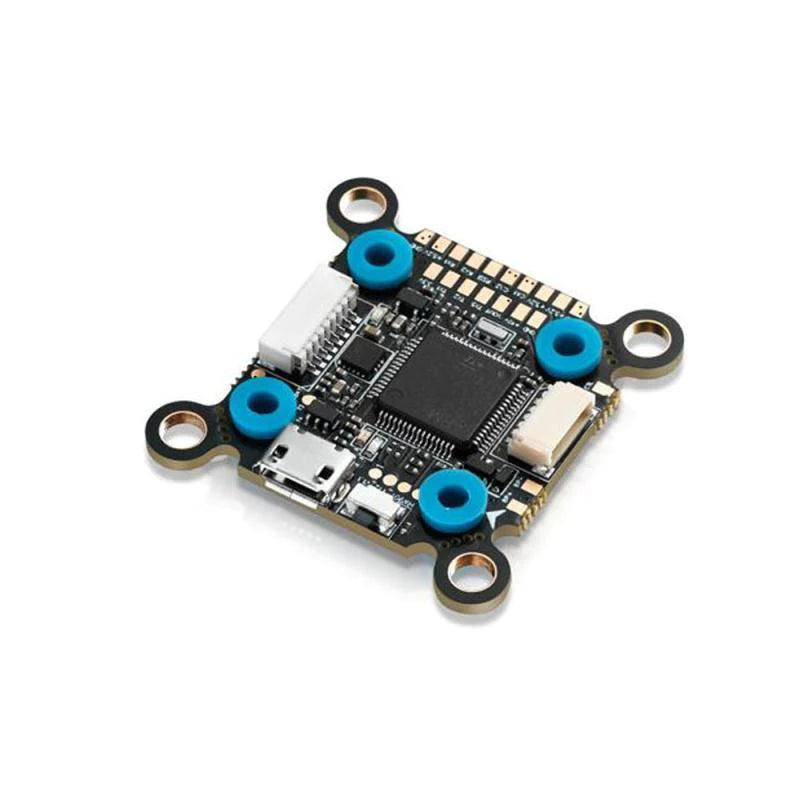

Xrotor Flight Controller Convertible FC with MPU6500

Xrotor Flight Controller Convertible FC with MPU6500

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out

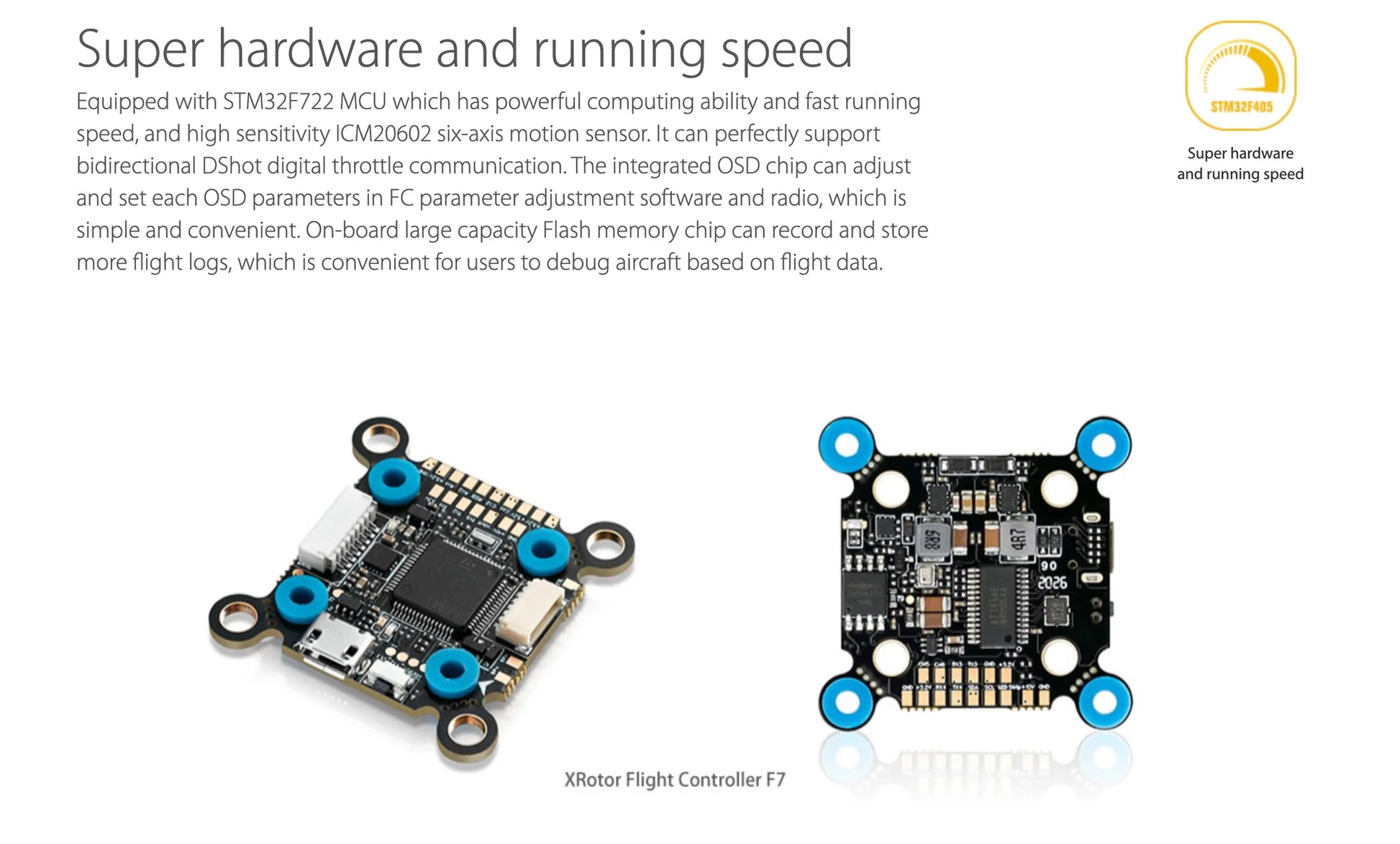

The new Hobbywing Convertible F7 flight controller is equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor. It can perfectly support bidirectional D-Shot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.

SPECIFICATIONS:

  • Compatible with (Multirotors) Quadcopters
  • Firmware HOBBYWING_XROTORF7CONV
  • FC Programming Supported
  • Programming via Betaflight/ Cleanflight-configurator
  • Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
  • Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
  • OSD Built-in
  • Voltage Monitoring Supported
  • Current Monitoring Supported
  • External Buzzer Supported
  • LED Control Supported
  • BEC 5V @ 1.5A ; 10V @ 1.5A
  • Size 32x32mm
  • Weight 3.3g
