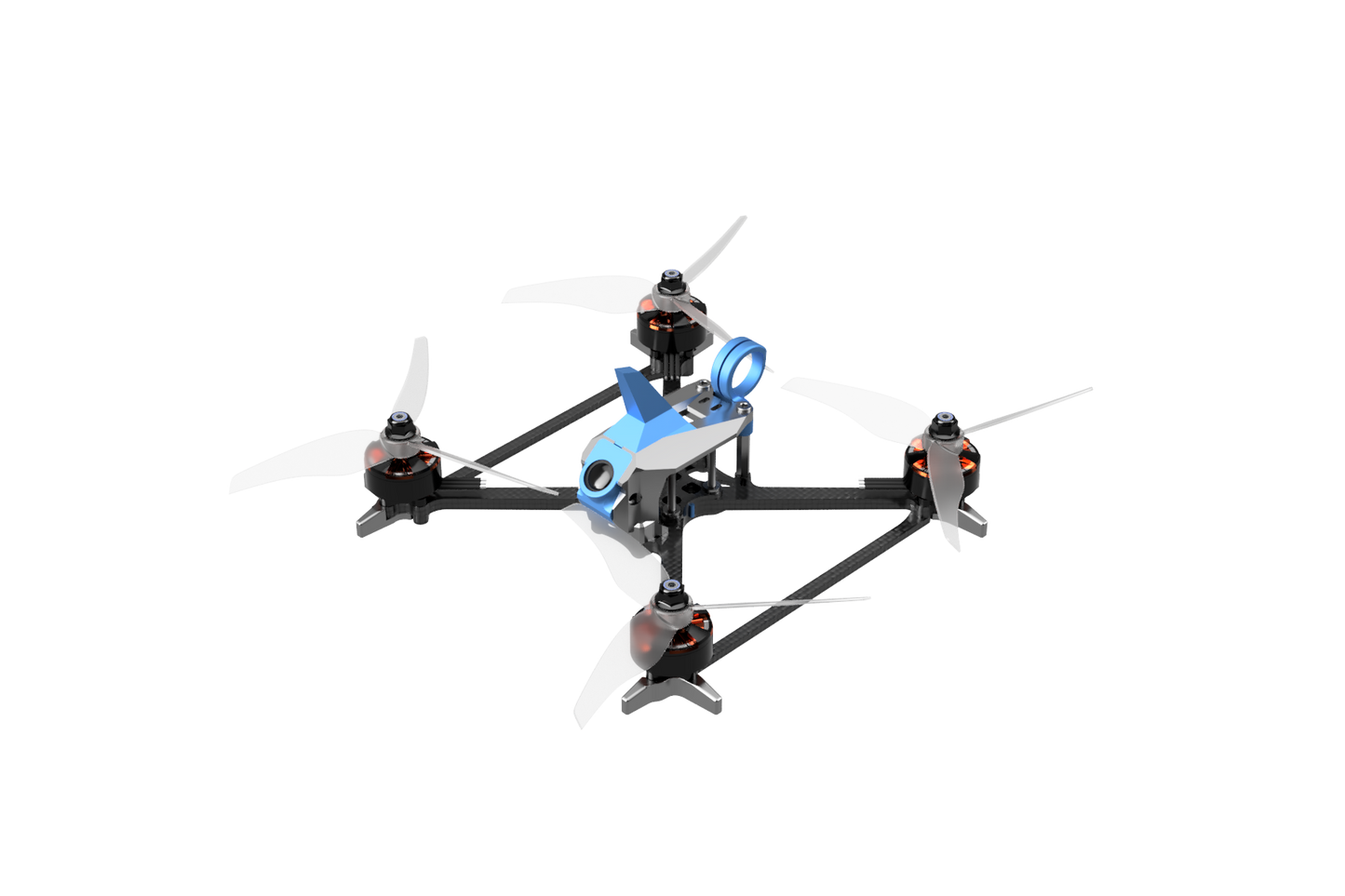

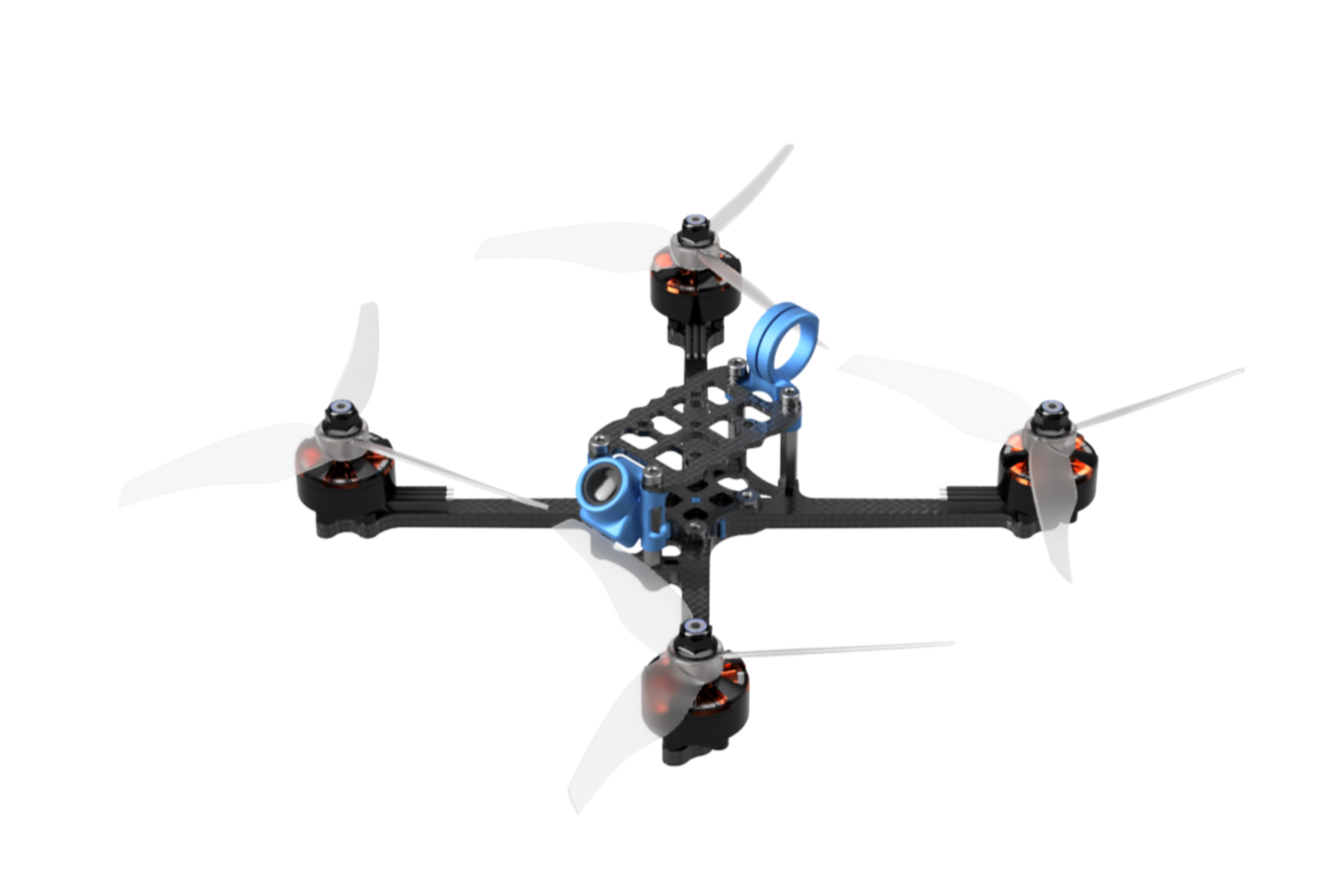

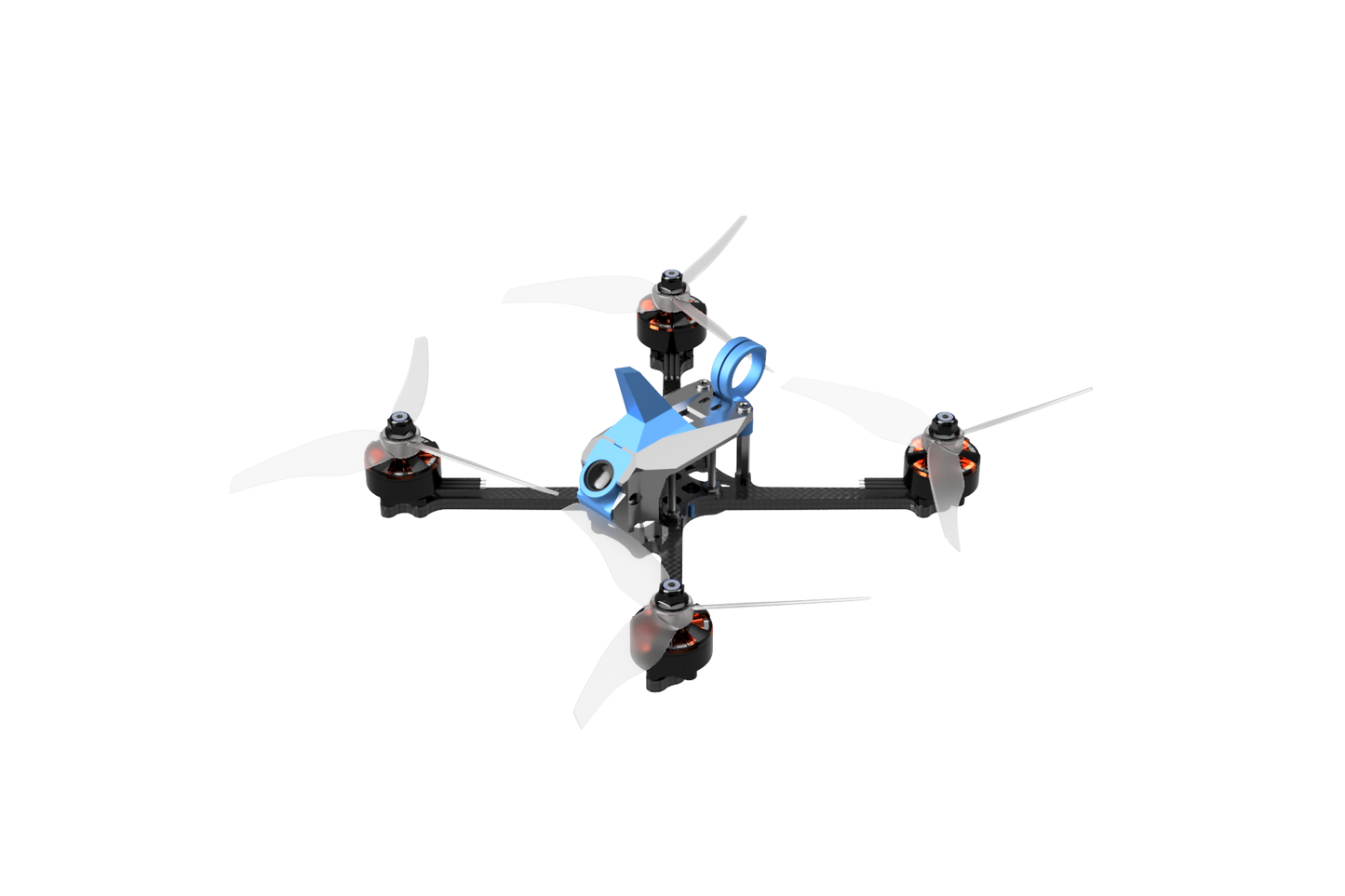

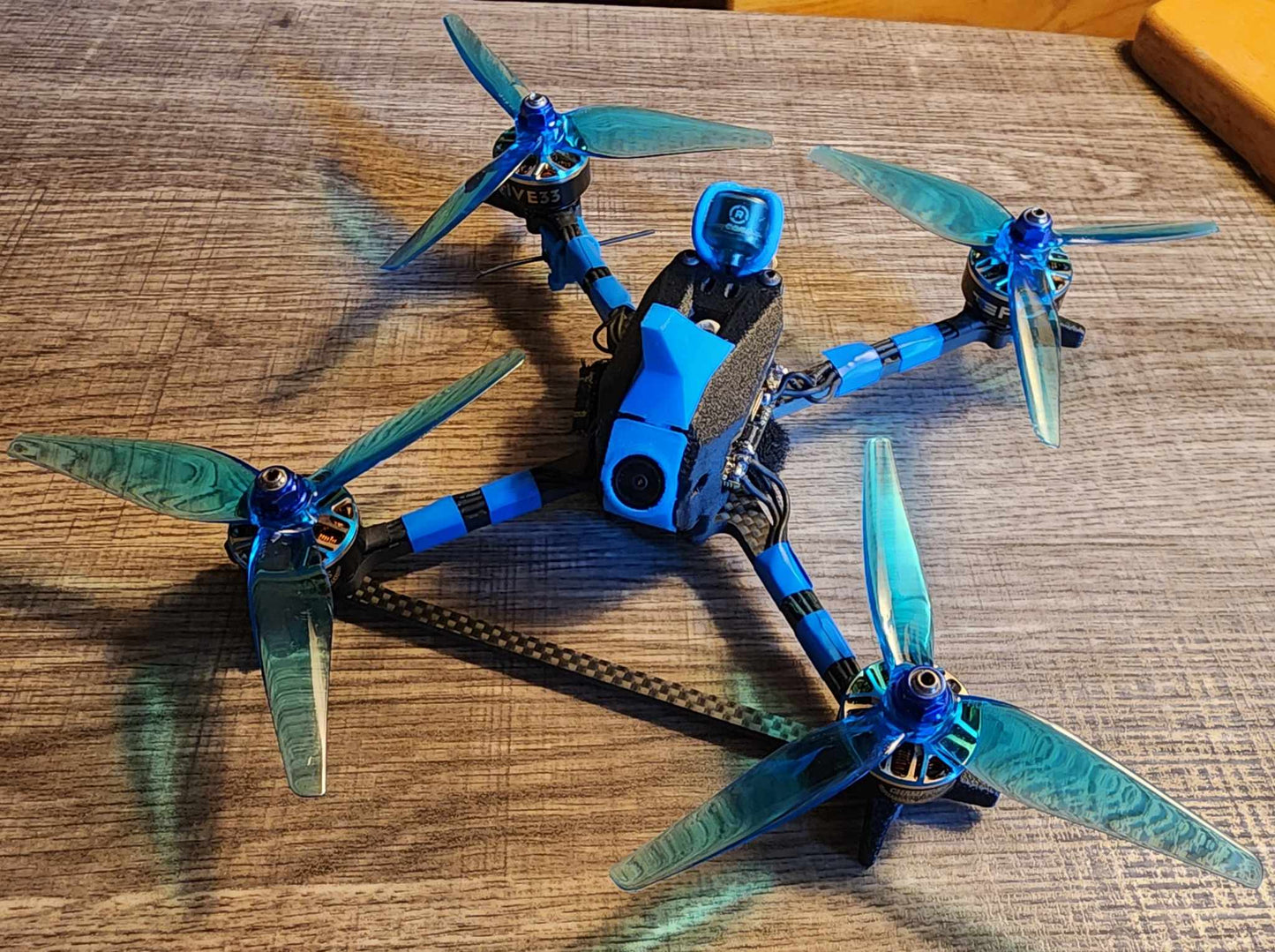

DinDrones OZR-5X - 5" racing frame

DinDrones OZR-5X - 5" racing frame

$54.99 USD
$54.99 USD
Sale Sold out
Frame type


DESCRIPTION:

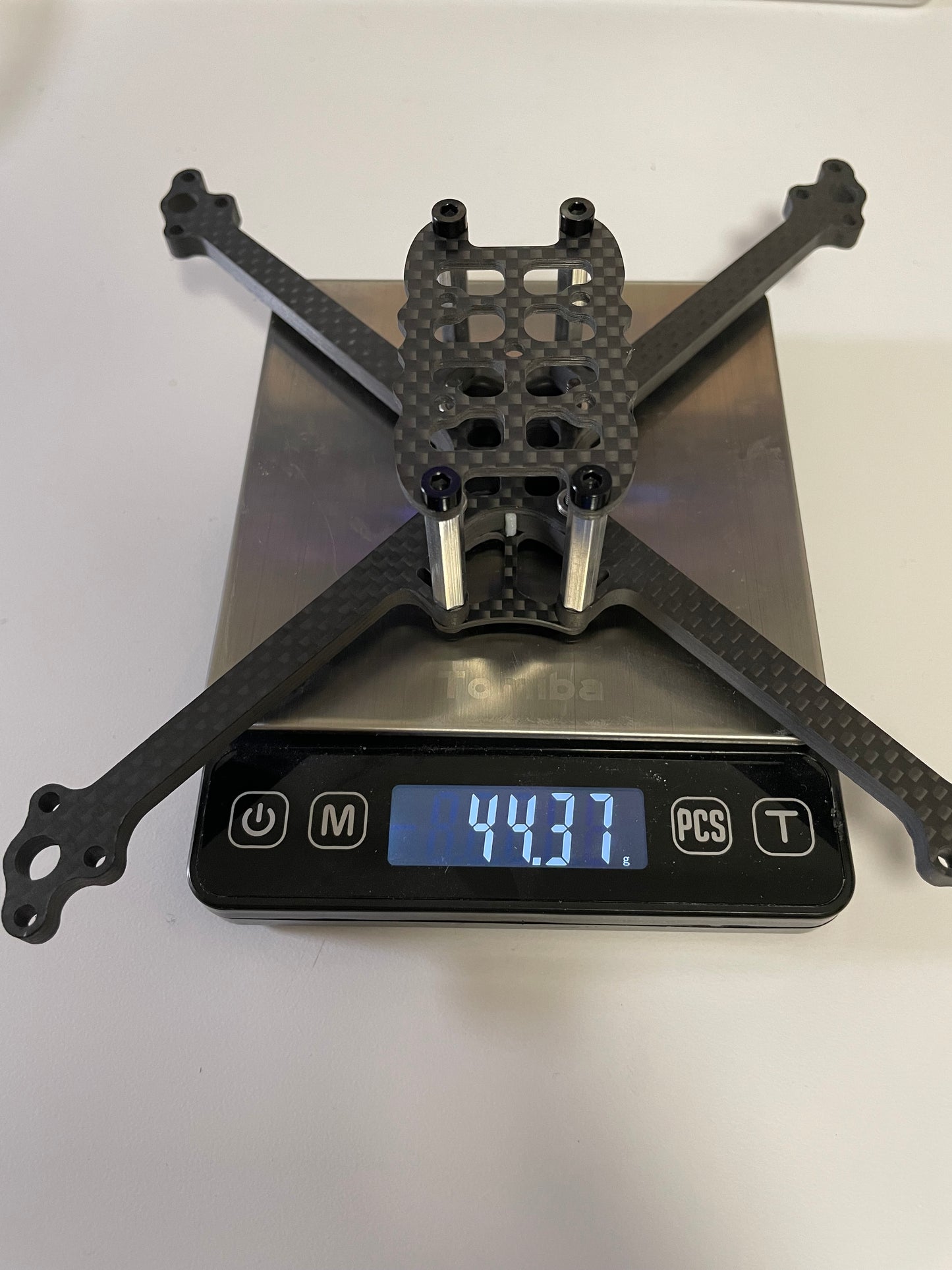

  • OZR-5X is a 44.37g racing frame - the lightest 5" frame ever developed.
  • Designed by a Red Bull Air Race team engineer.
  • Low to no tuning required when using MPU6000.
  • Comes with US sourced military grade steel and aluminum hardware.
  • 46.5 mm stand-off spacing allows for larger ESCs.
  • Unique “Torque Box” arm design with center TPU damper eliminates wiggle while reducing frame noise.
  • True X arm layout provides optimal fiber orientation for load path from motors to quad center of gravity.
  • Minimal mid plate creates a trunk and frunk for easy Rx placement options.
  • Can be enhanced with extra protection:

- Side/front/rear braces
- Motor protection
- Customizable pod

TUNING STEPS:

  • Apply OZR-5X preset in Betaflight (Presets tab, search for OZR-5X)

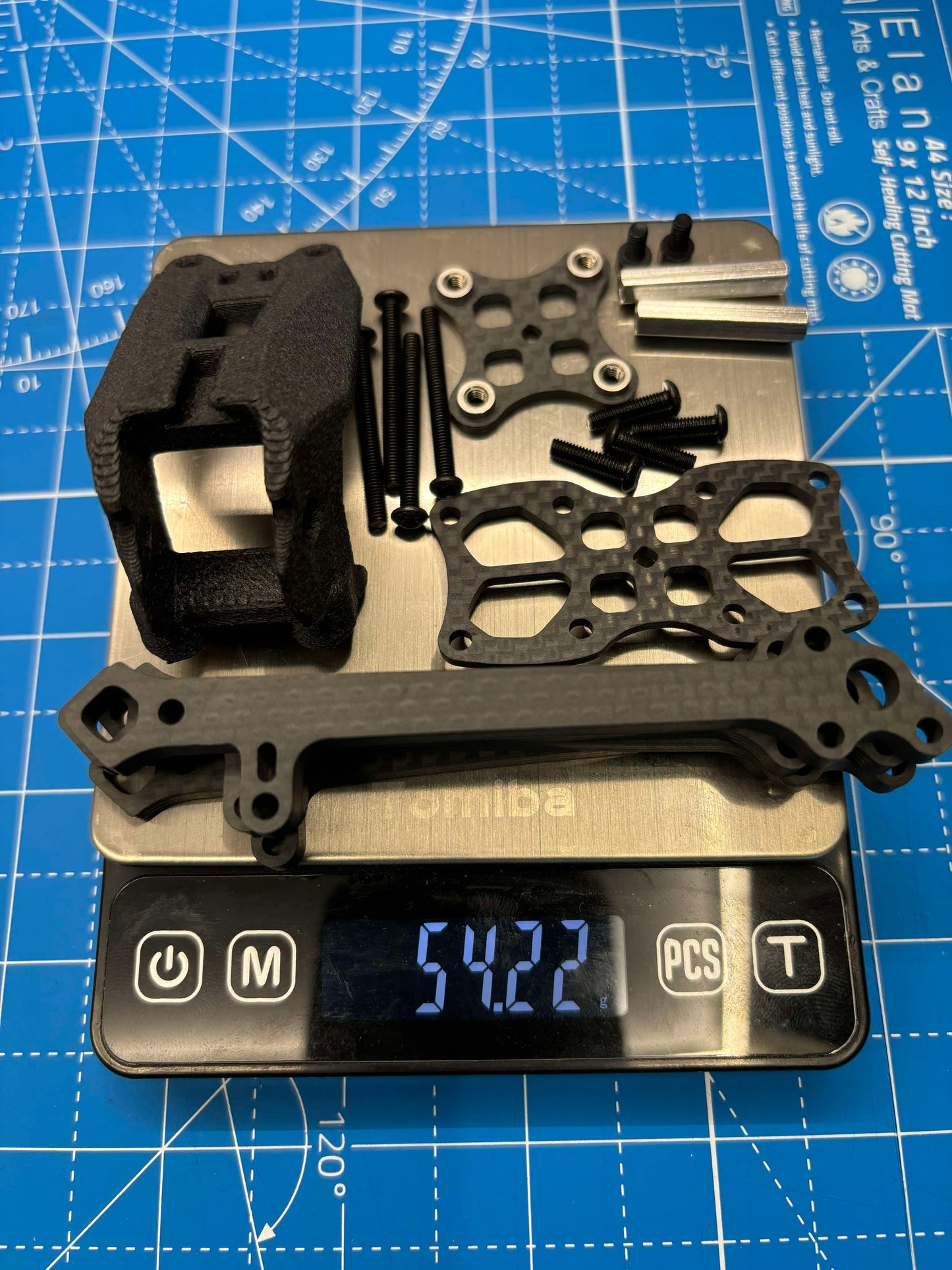

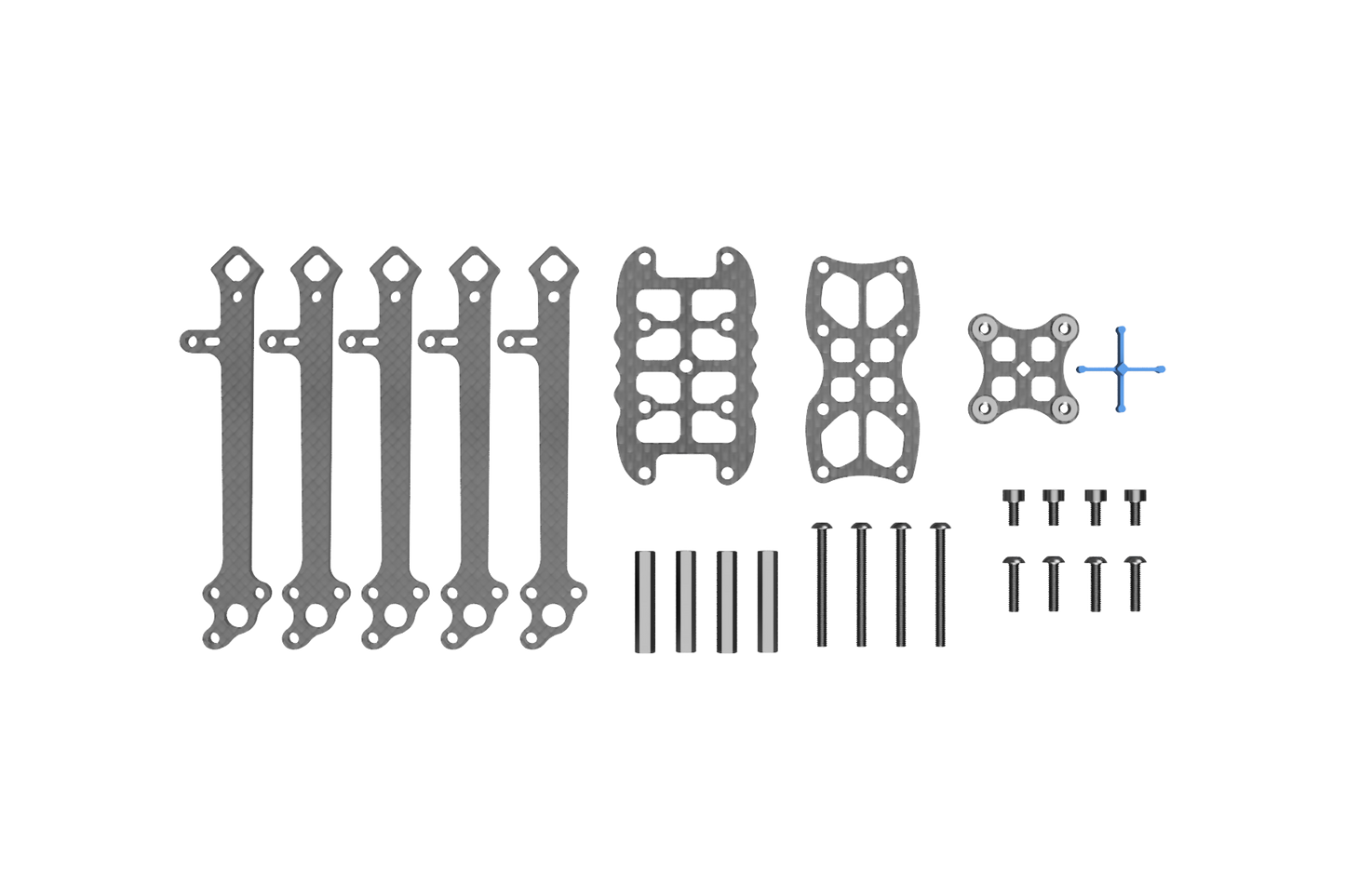

WHAT'S IN THE PACKAGE:

No TPU included, please purchase it separately here or print yourself.

  • Carbon:
- 1 x 2mm T700 Top plate
- 1 x 2mm T700 Middle plate OR 1 x 2mm T700 TBS Middle plate
- 1 x 2mm T700 Bottom plate
- 5 x 5mm T700 arm
- 4 x M3 x .5 x 12mm Button Socket Cap Alloy Steel
- 4 x M3 x .5 x 30mm Button Socket Cap Alloy Steel

- 4 x M3 x .5 x 6mm Socket Head Cap Screws 7075 T6

- 4 x M3 ASTM B211 hex standoffs

STORY:

Designed exclusively for DinDrones by Ben Freelove of OZORA Drone Labs. Ben is a race engineer and tactician for World Champion Red Bull Air Race pilot Yoshi Muroya in Japan. He is an experienced aerobatic pilot and instructor having been a member of the US Aerobatic Team multiple times and has flown in countries all around the globe. His love of three-dimensional sports led naturally to drone racing where he now is obsessed with designing fast quads!

Over a year and a half of development and many concepts / testing cycles resulted in OZR-5X which you can experience right now!
