Built for speed. Engineered for precision.

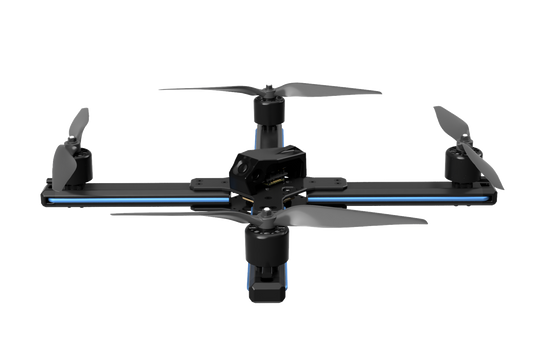

The AER Frame is the official foundation of the Aero Elite Racing spec-class platform, designed for pilots who demand professional performance, strength, and balance.

Made from T700 carbon fiber, the frame includes four carbon fiber hex arms and two precision-cut top & bottom plates for exceptional rigidity with minimal weight. The hex-arm geometry improves torsional stiffness and crash resistance while keeping flight characteristics predictable and race-ready.

Each kit ships with a full high-strength hardware set so you can build to competition standards right out of the box. ~~An optional TPU accessory kit (arm inserts, camera pod, protective mounts) can be purchased separately or 3D printed.~~ not true during limited time offer.

FEATURES:

Official Aero Elite Racing spec frame
Premium T700 carbon fiber construction — ultra-rigid and crash-resistant
Optimized weight distribution for stable, agile flight
Clean, modular design for quick assembly and field service
Aero-tuned geometry for minimal drag and maximum responsiveness

WHAT'S IN THE PACKAGE:

Limited time offer: 4 x TPU arm inserts (front & rear) + TPU canopy (Black) + TPU double XT60 connection system
4 x Hex T700 tube arms
2 x 4mm T700 Top/Bottom plate
24 × M4 × 12 mm countersunk screws — Steel YSF 12.9 (Black)
4 × M3 × 20 mm countersunk screws — Steel YSF 12.9 (Black)
4 × M3 × 20 mm button head screws — Steel YSF 12.9 (Black)
16 × M3 × 25 mm button head screws — Steel YSF 12.9 (Black)
4 × M3 brass heat inserts
12 × M4 × 7.0 × 17 mm threaded hex spacers — Steel
16 × M3 × Ø6.0 × 17 mm non-threaded round spacers — Aluminum

RECOMMENDED PARTS:

SUMMARY: Competition-grade frame built to Aero Elite Racing standards. Engineered for durability, precision, and performance with premium T700 carbon fiber and a complete hardware kit. Customize with optional TPU parts or 3D print your own.
