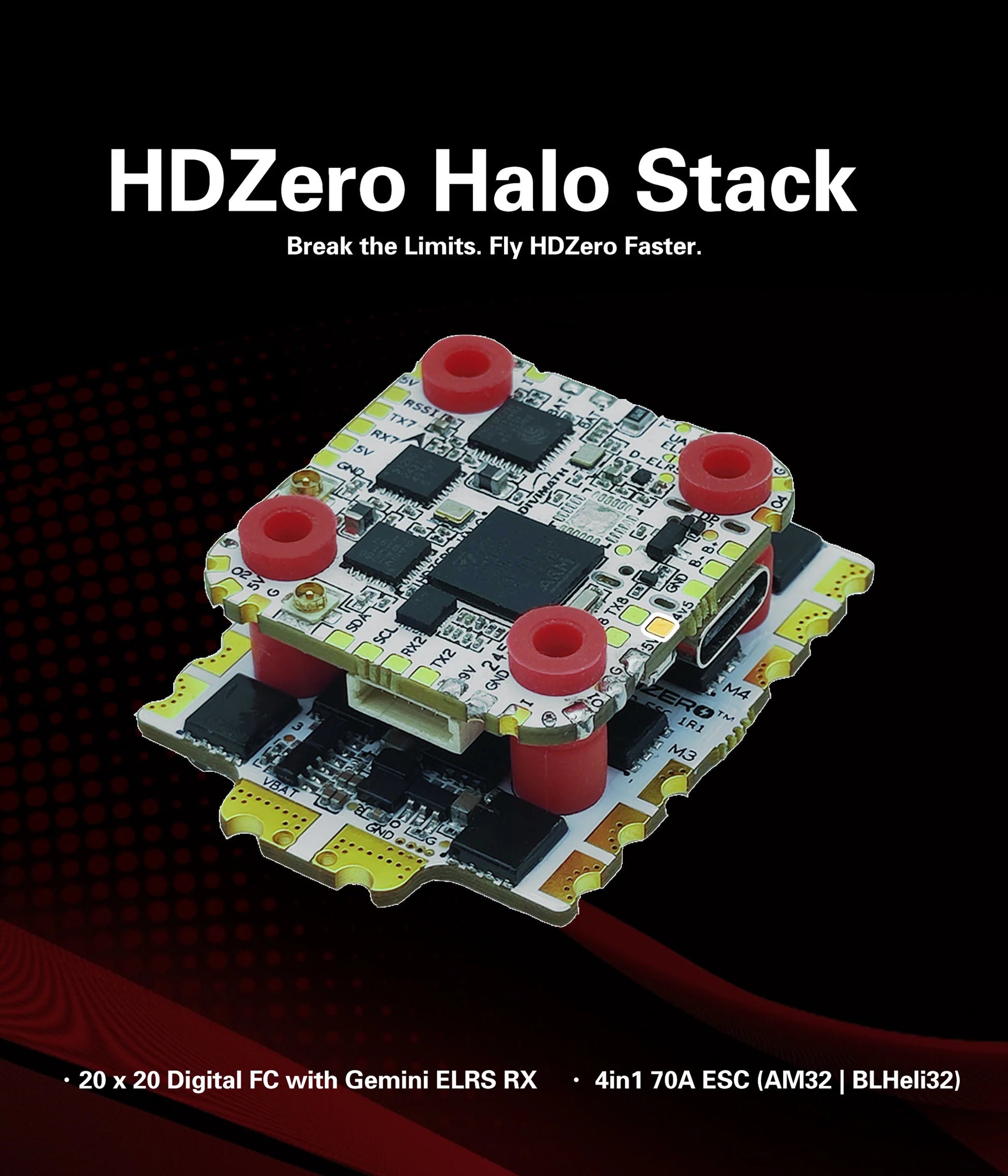

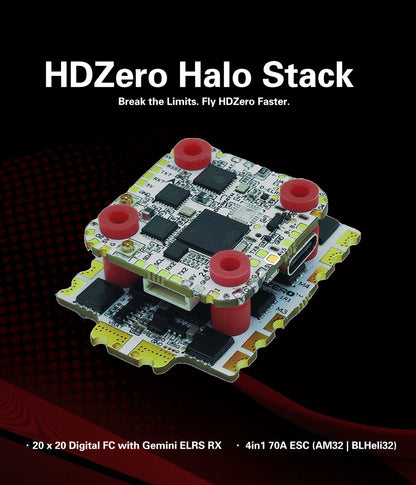

HDZero Halo Stack – Flight Controller + 4in1 70A ESC
The HDZero Halo Stack combines the Halo Flight Controller and Halo 4in1 70A ESC into a race-ready powertrain, engineered by HDZero—leaders in high-performance digital FPV systems. Designed for power, reliability, and ease of assembly, this stack is the ultimate solution for competitive racing and freestyle pilots.

With its clean layout, minimal wiring, and integrated components, the HDZero Halo Stack is the easiest way to build a professional-grade racing drone—without sacrificing performance, reliability, or serviceability.

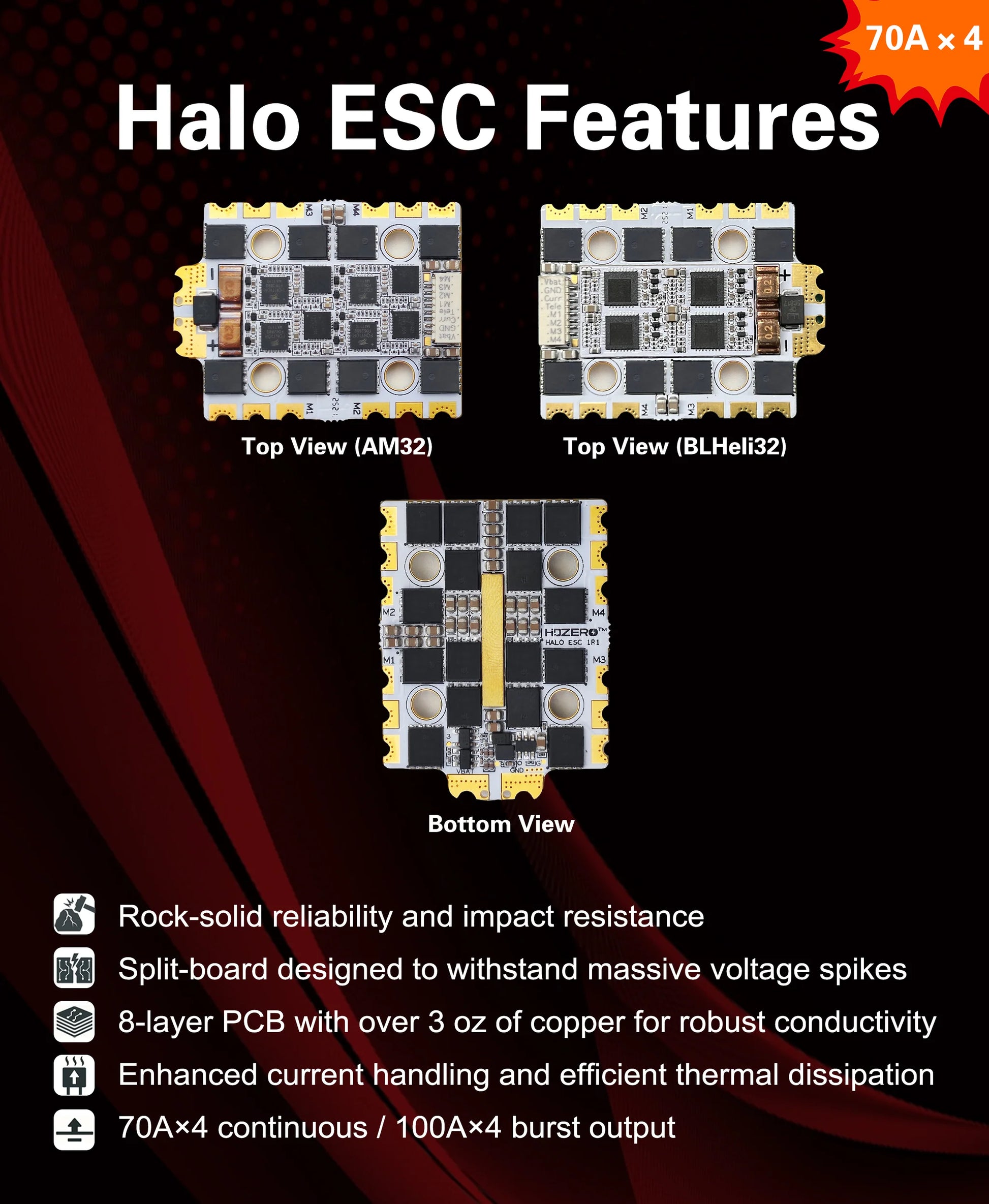

At its core is the Halo 4in1 70A ESC, built for extreme durability and responsive throttle. A split-board design separates control and power stages, improving thermal performance and crash resilience. With 24 MOSFETs across an 8-layer PCB using 3oz copper per layer and a rear-mounted copper bar, the Halo ESC delivers exceptional burst throttle response with minimal voltage drop. Rated for 70A continuous per motorand 100A bursts, the ESC supplies clean, stable power while protecting sensitive electronics from voltage spikes. A conformal coating adds moisture, dust, and corrosion resistance. Choose between BLHeli32 (fw 32.10) or AM32 firmware based on your preference.

The Halo Flight Controller simplifies your build while delivering professional-grade control. Powered by an H7 processor, it integrates a Gemini true diversity ELRS receiver, using dual independent receivers for rock-solid control link stability. A TXCO (temperature-compensated crystal oscillator) maintains consistent ELRS performance even in extreme temperatures—essential for race conditions.

The integrated ELRS RX not only simplifies quad assembly but also provides a cost-effective solution. With the Gemini ELRS RX typically priced at $25, this combination represents significant savings compared to purchasing separate ELRS receivers and flight controllers.

Built for digital video systems, the Halo eliminates the analog OSD chip to reduce costs and save space. It is specifically designed to allow the HDZero Race v3 VTX to stack on top of it in a low-profile manner, resulting in a durable and compact stack height. This optimization ensures a secure, space-efficient build while maintaining excellent performance.

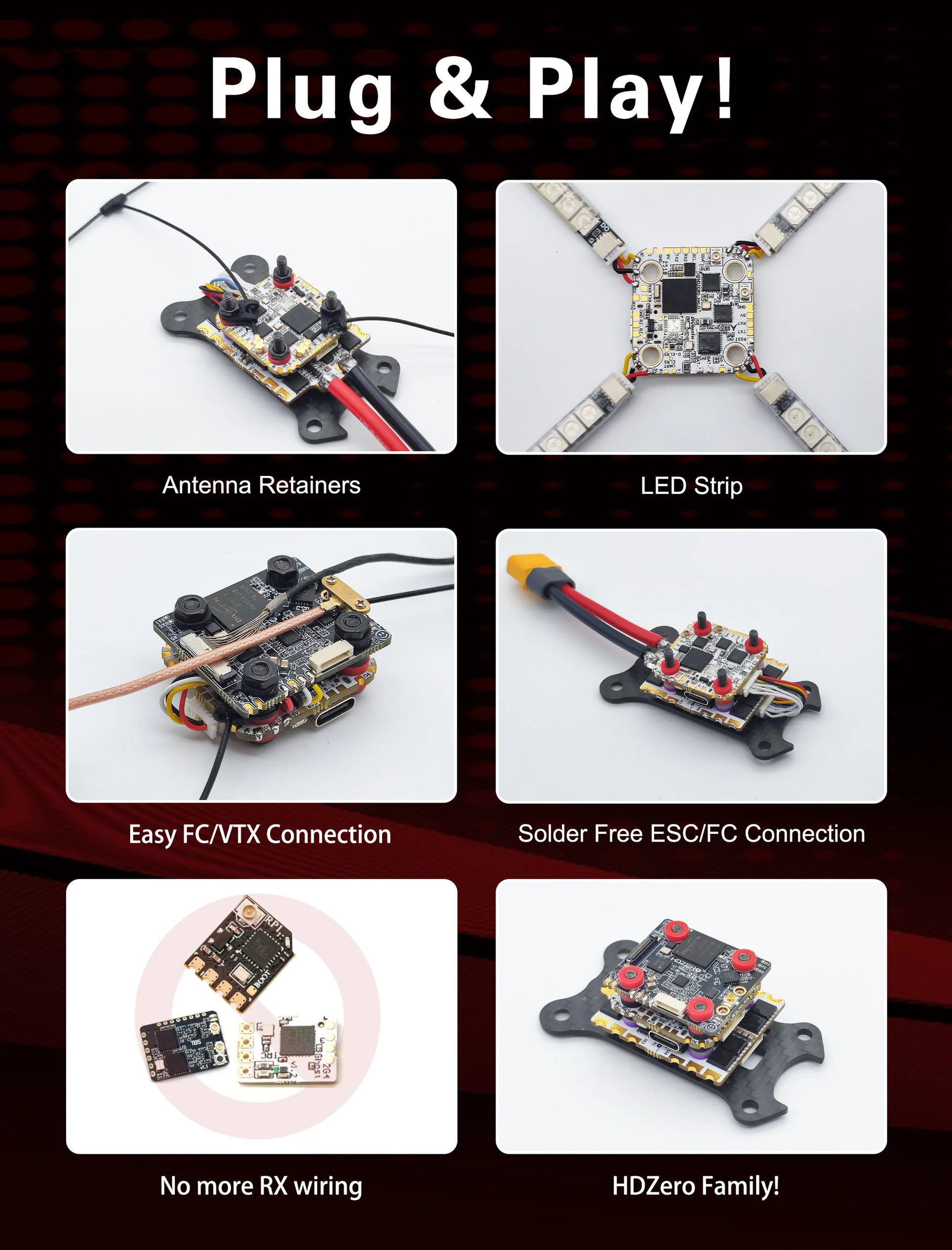

The Halo FC requires no soldering for VTX, receiver, or ESC connections. Everything plugs directly into dedicated sockets using included cables, making assembly and field repairs fast and frustration-free. This low-profile, modular design results in a tidy, durable racing stack.

The switchable 9V BEC powers your HDZero VTX, with remote control over power via Betaflight to simplify pit stops and extend VTX lifespan. A separate 5V/4A BEC is capable of powering an entire competition-grade LED setup without the need for external regulators.

The Halo Flight Controller is available in two versions, MPU6000 and ICM42688, to meet different pilot preferences.

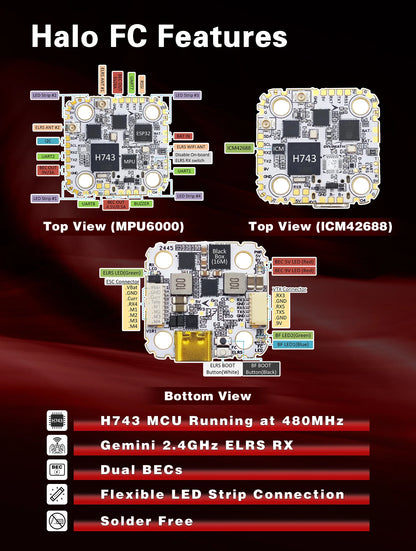

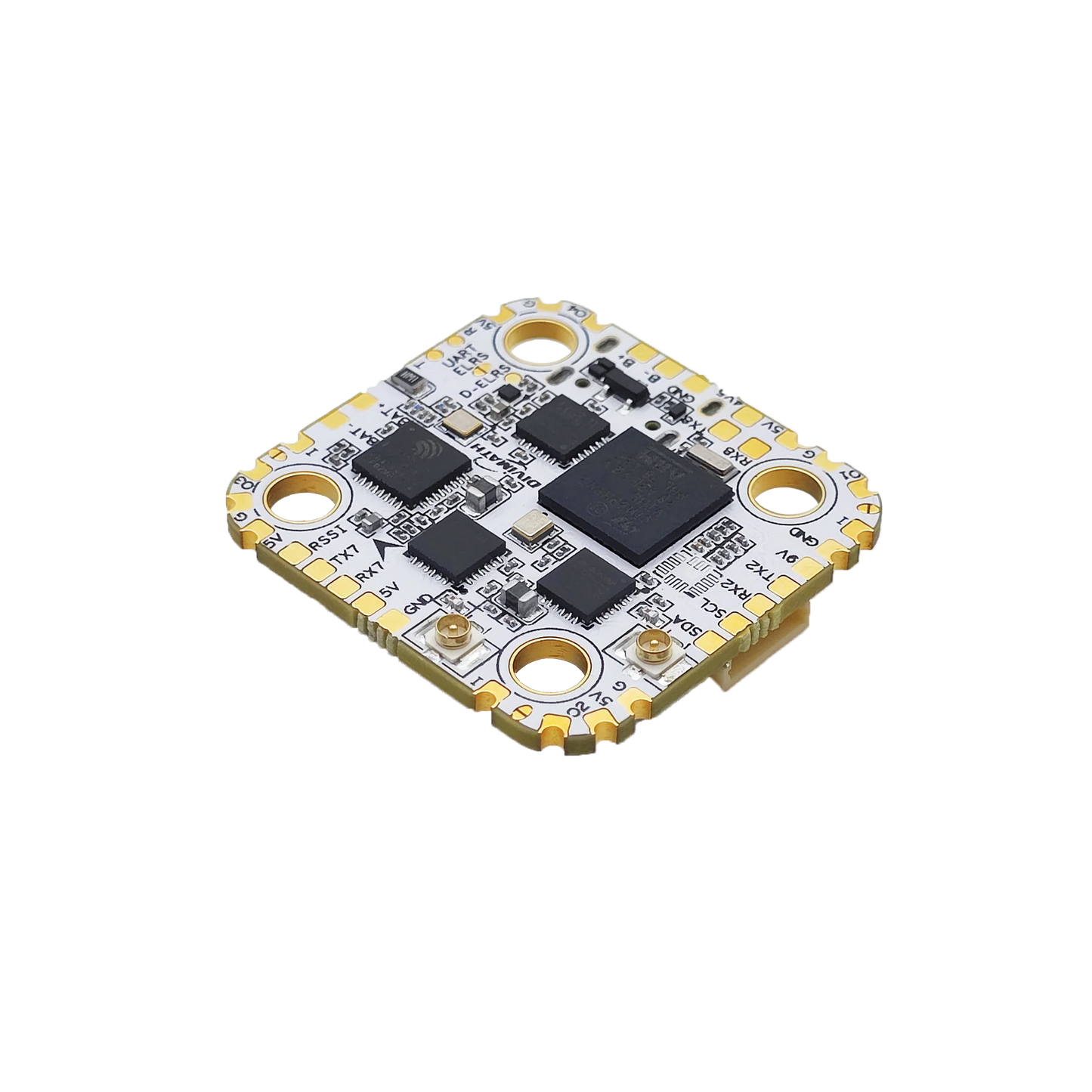

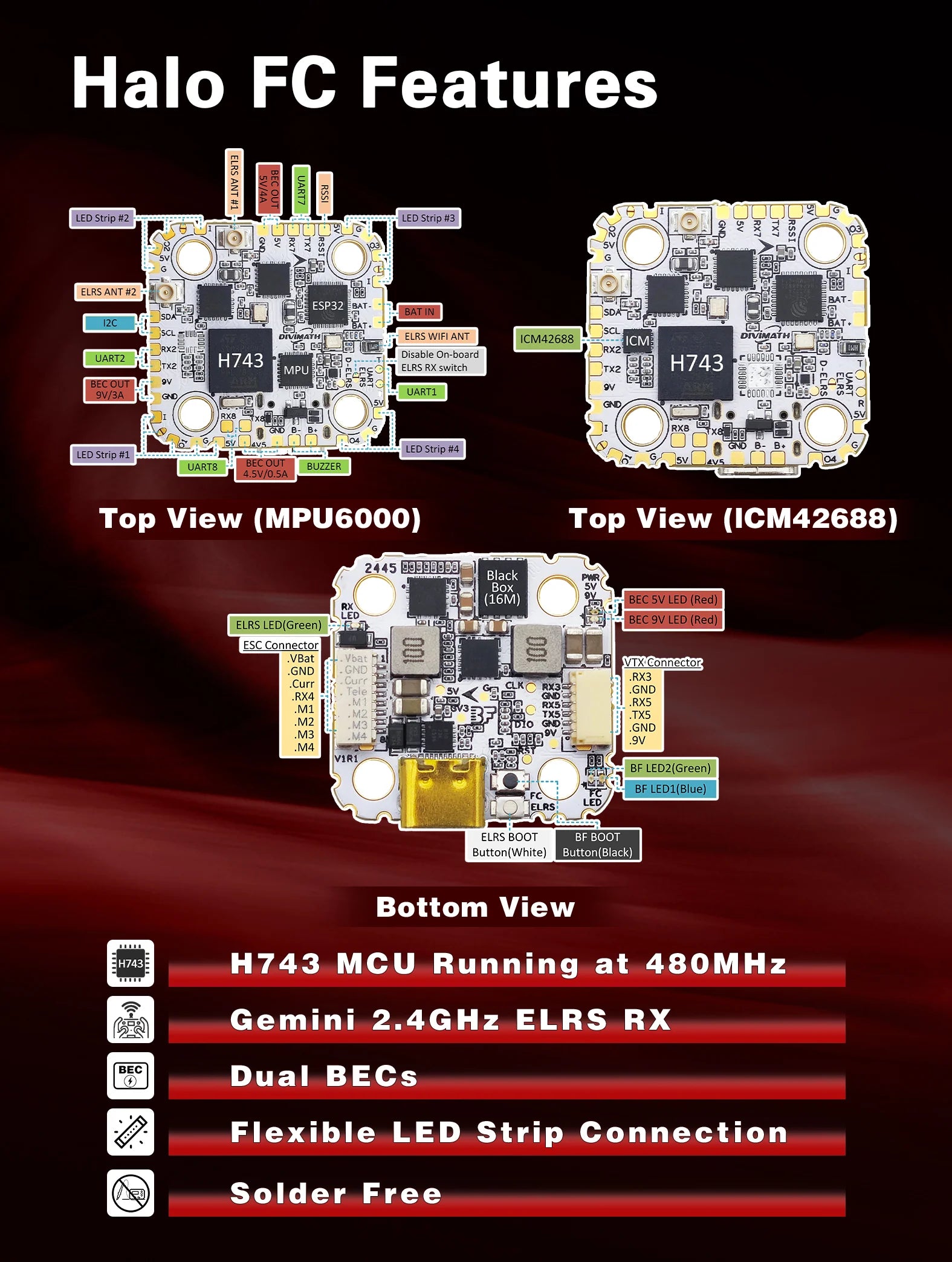

Halo Flight Controller

  • Plug-and-play HDZero race build – no soldering required for RX, VTX, or ESC connections
  • Integrated Gemini true diversity ELRS receiver for superior control link stability
  • TXCO-enhanced ELRS performance in high-heat race environments
  • H7 processor for fast, responsive control
  • Dedicated switchable 9V/3A BEC to power HDZero VTX, controlled via Betaflight
  • Powerful 5V/4A BEC supports full competition LED kits
  • Optimized for low-profile stacking with HDZero VTX
  • Optional MPU6000 or ICM42688 gyros
  • Betaflight firmware (HDZERO_HALO target)

CPU

     STM32H743 (480MHz)

Gyro

     MPU6000 or ICM42688

BEC output

     DC 5V/4A
     DC 9V/3A
     DC 4.5V/0.5A

Black Box

     16MB Flash memory

I2C Pads

     Yes

UART Pads

     TX2/RX2, TX7/RX7, TX8/RX8

ESC Telemetry

     RX4

VTX MSP UART

     TX5/RX5

DJI HDL

     RX3

Buzzer Pads

     Yes

LED Strip

     Parallel or Serial

USB

     Type-C

Analog OSD

     No

FC Firmware

     Betaflight: HDZERO_HALO

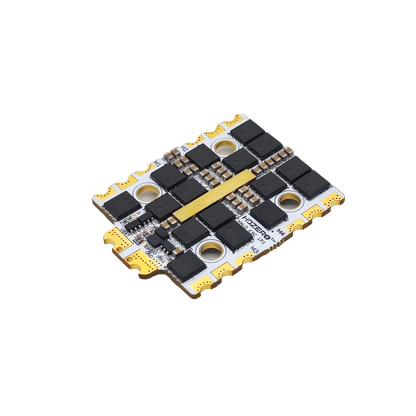

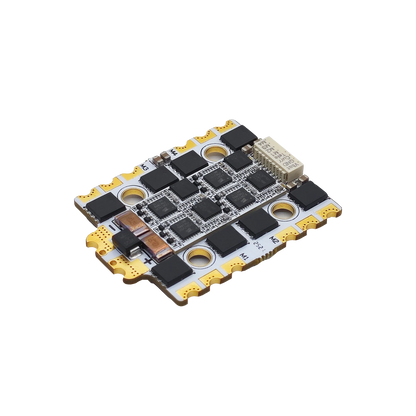

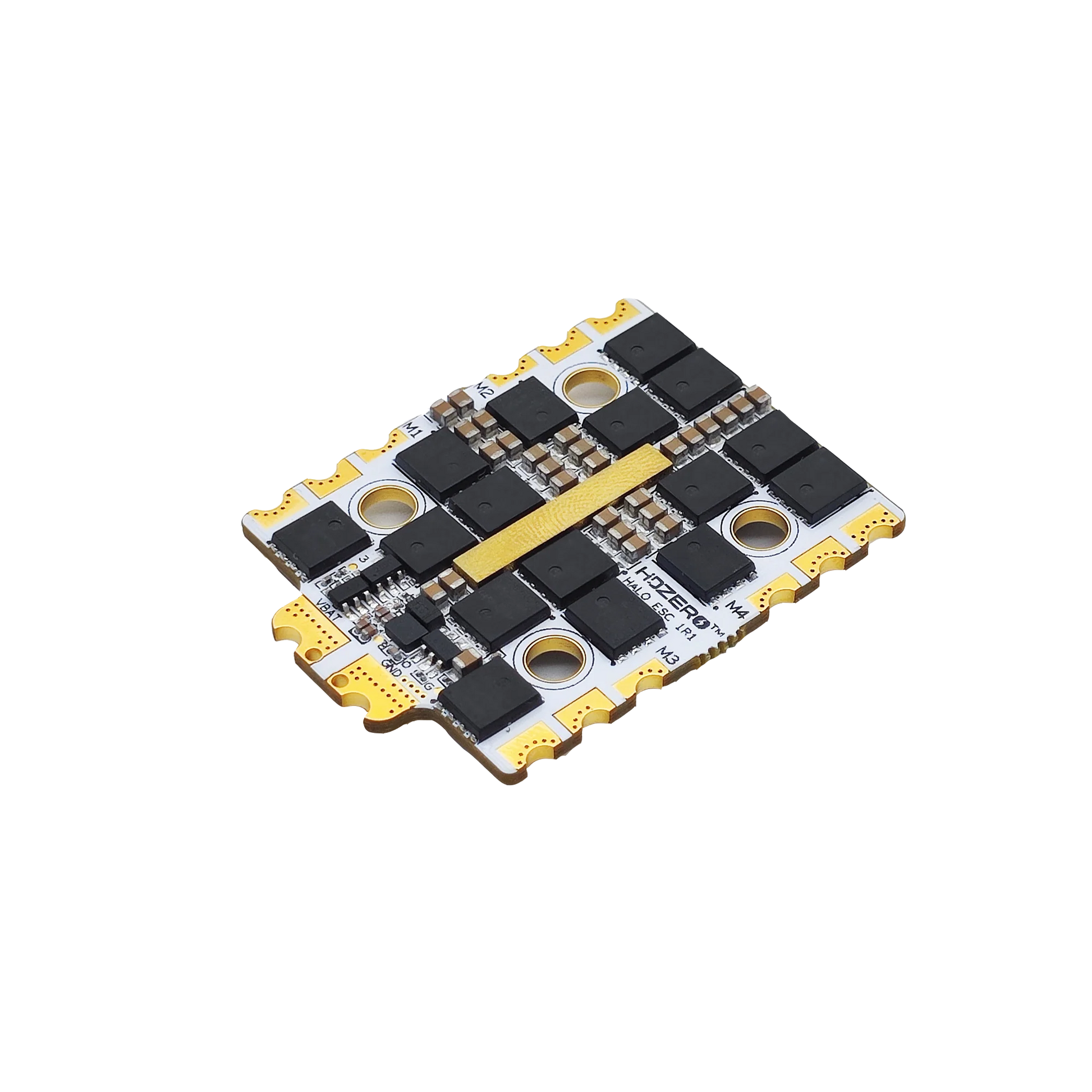

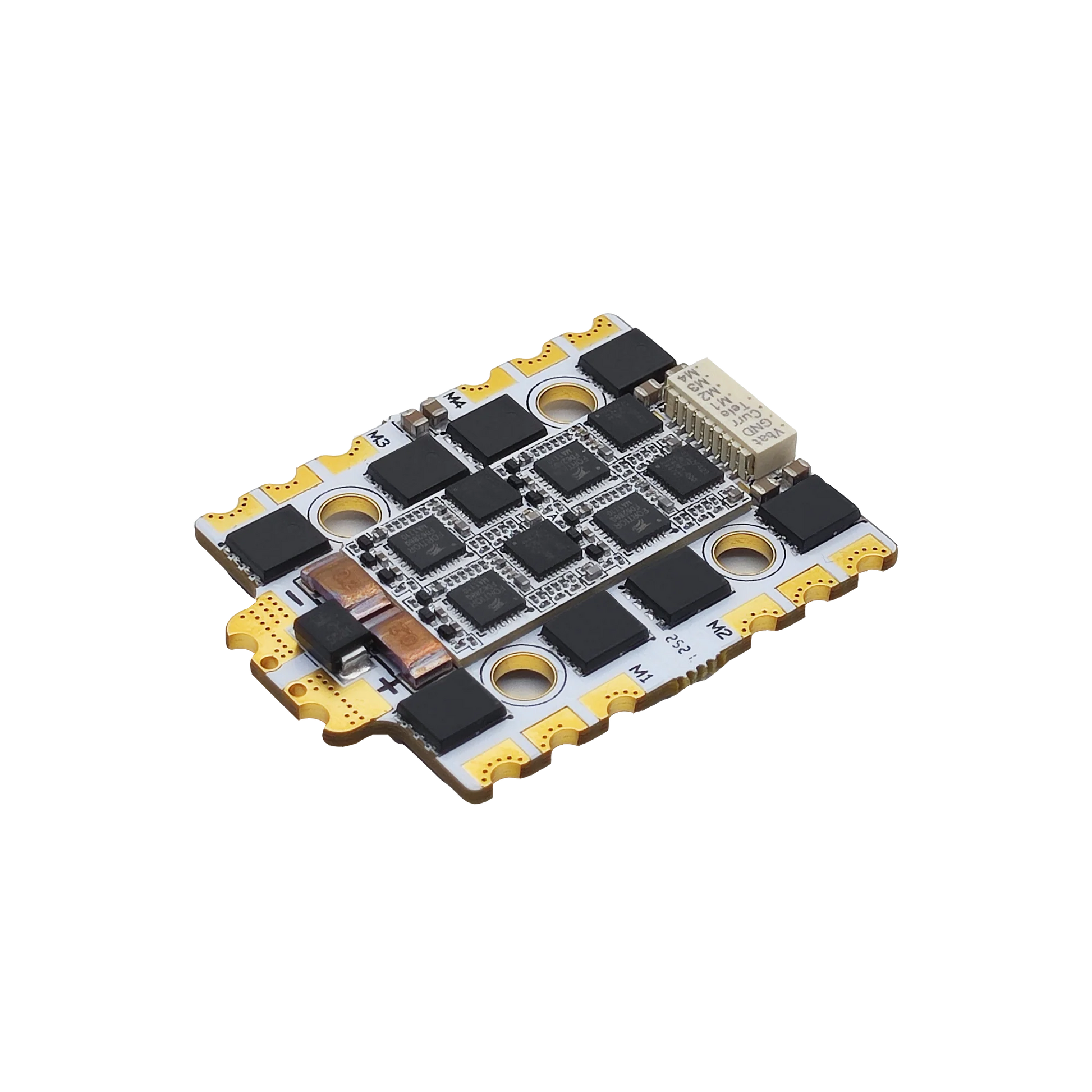

Halo 4in1 70A ESC

  • Split-board architecture with copper bus bar for optimized burst throttle response
  • 8-layer PCB with 3oz copper per layer and 24 MOSFETs
  • Continuous 70A per motor / 100A burst (3 seconds)
  • Exceptionally clean power delivery protects flight controller from voltage spikes
  • Conformal coating for moisture, dust, and corrosion protection
  • Dual-sided motor solder pads for flexible builds
  • Firmware options: BLHeli32 (fw 32.10) or AM32
  • Telemetry support
  • Supports 3S to 8S batteries (9V–40V input)

Model

HDZero Halo 4in1 70A ESC

CPU

AT32F421 (120MHz)

Firmware

BLHeli 32.10

AM32 2.18

Target: HDZ_ESC_1R0_F421

Input Voltage

DC 9V – 40V (3S – 8S)

Telemetry

Supported

Input signal

Dshot 150/300/600/1200, MultiShot, OneShot

Output Voltage

VBAT (to power the FC)

Max Current

Over 70Ax4 (Continuous) / 100Ax4 (Burst)

Current Sensor

Scale = 400, offset = 0

Dual-sided solder pads

YES

Dimension

33x43mm

Mounting

20x20mm, Φ4mm/M6

Weight

13.4



ELRS Receiver

Chip Set

     ESP32 + 2x SX1280

FC UART

     TX1/RX1

True Diversity RX

     Yes

RF Frequency

     2.4GHz

Max TX RF Power

     10mW

Antenna Interface

     2xU.FL

ELRS Firmware

     HDZero Halo FC 2.4G Gemini RX

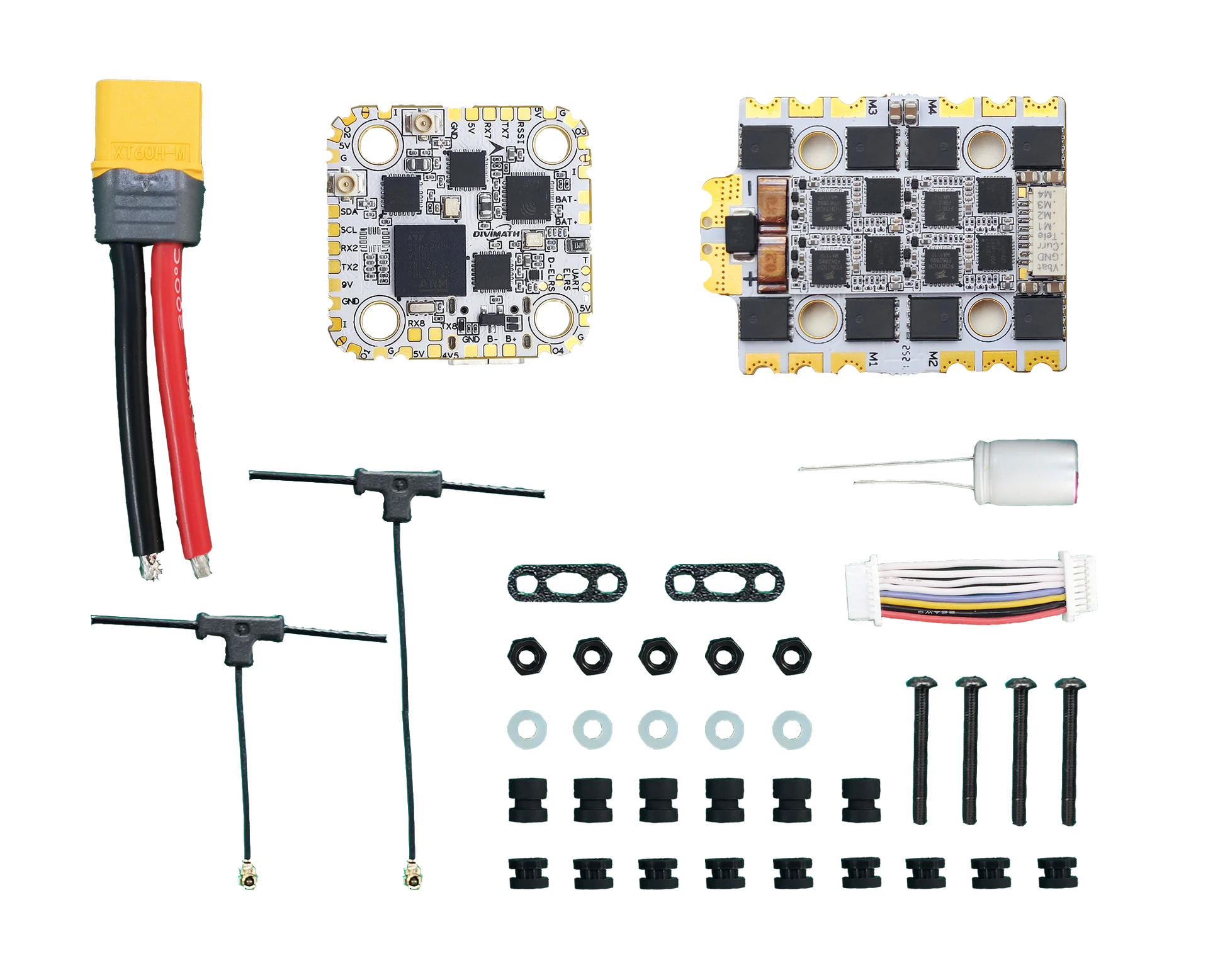

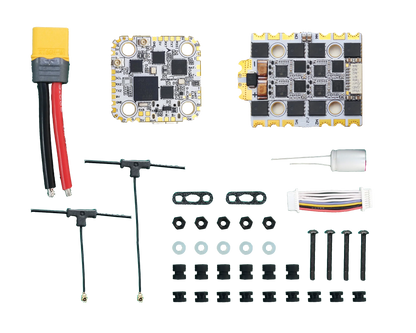

Includes
- 1x HDZero Halo FC
- 1x HDZero Halo ESC
- 1x ESC cable (8-pin SH1.0, 30mm)
- 1x XT60 cable (70mm,12AWG)
- 1x 35V/1000uf capacitor
- 9x Rubber grommet (4.5mm height)
- 6x Rubber grommet (6.6mm height)
- 5x Nylon washer (M3 1.0mm thick)
- 5x 304 Steel nuts (M3 2.3mm thick)
- 4x 12.9 Carbon steel screws (M3 25mm
length)
- 1x ELRS T-sharp short antenna (40mm)
- 1x ELRS T-sharp long antenna (90mm)
- 2x ELRS Antenna retainers
