M3 TC4 Titanium Button Head Screws (4pcs)

Premium lightweight hardware for builds where every gram matters.

These M3 TC4 titanium button head screws use the same Ti-6Al-4V family of alloy trusted in aerospace applications: high strength, excellent corrosion resistance, and a clean premium finish without the weight penalty of steel.

• M3 thread
• Button head with hex socket drive
• Sold as one 4-piece set per selected length
• Available lengths: 8mm, 10mm, 12mm, 16mm

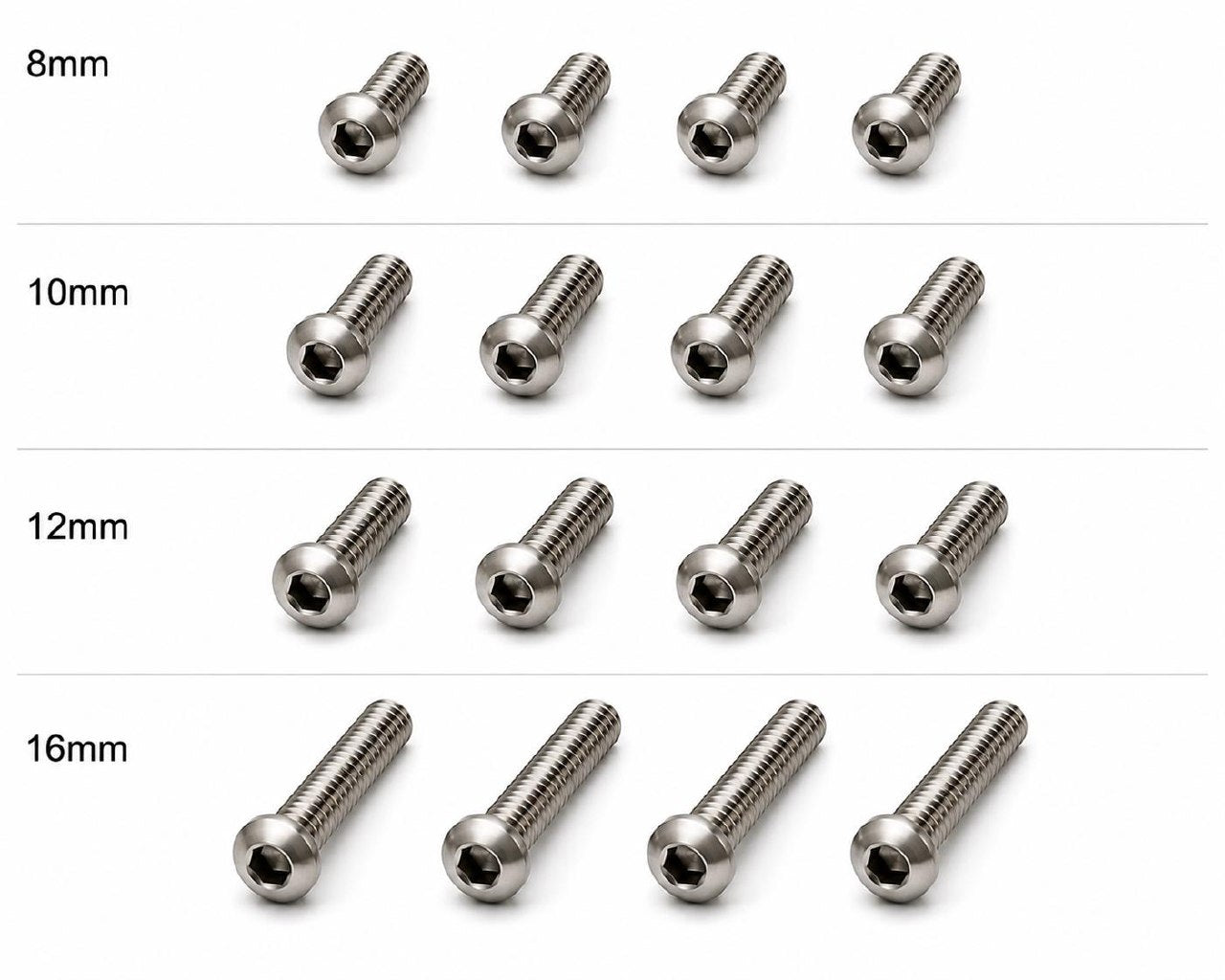

• Main image shows all available lengths for comparison

Strength comparison vs our YSF 12.9 steel hardware:

• TC4 / Ti-6Al-4V titanium is published around 900-950 MPa ultimate tensile strength
• Class 12.9 steel is published around 1220 MPa ultimate tensile strength
• So yes: 12.9 steel wins on raw absolute tensile strength
• But titanium is roughly 42-44% lower density than steel, giving it an approximately 31-35% better strength-to-weight ratio

What that means on a real FPV build: if your only goal is maximum absolute bolt strength per dollar, 12.9 steel is the brute-force choice. If you want premium hardware that is still seriously strong while cutting weight and resisting corrosion, TC4 titanium is the better upgrade.

OZR with steel screws, 5mm arms:

• 12mm standoff x 4 - 2.7g
• 8mm top plate x 4 - 2.03g
• 30mm stack x 4 - 5.83g
• 8mm motor screws - x 12 - 6.09g
• Total: 16.65g


OZR with Ti screws, 5mm arms, sandwich build:

• 12mm standoff x 4 - 1.54g
• 8mm top plate x 4 - 1.19g
• 16mm stack / top plate x 8 - 3.38g
• 8mm motor screws - x 12 - 3.57g
• Total: 9.68g

OZR with Ti screws, 5mm arms, TBS plate + nylon:

• 12mm standoff x 4 - 1.54g
• 8mm top plate x 4 - 1.19g
• 10mm stack x 4 - 1.41g
• 18mm nylon stack - 0.6g
• 8mm motor screws - x 12 - 3.57g
• Total: 8.31g


Measured Weight Comparison

Measured on actual screws using a digital scale. The last row compares 8pcs of 16mm titanium against 4pcs of 30mm steel.

Note: each variant is one set of 4 screws in the selected length, not a 16-piece assorted kit.
