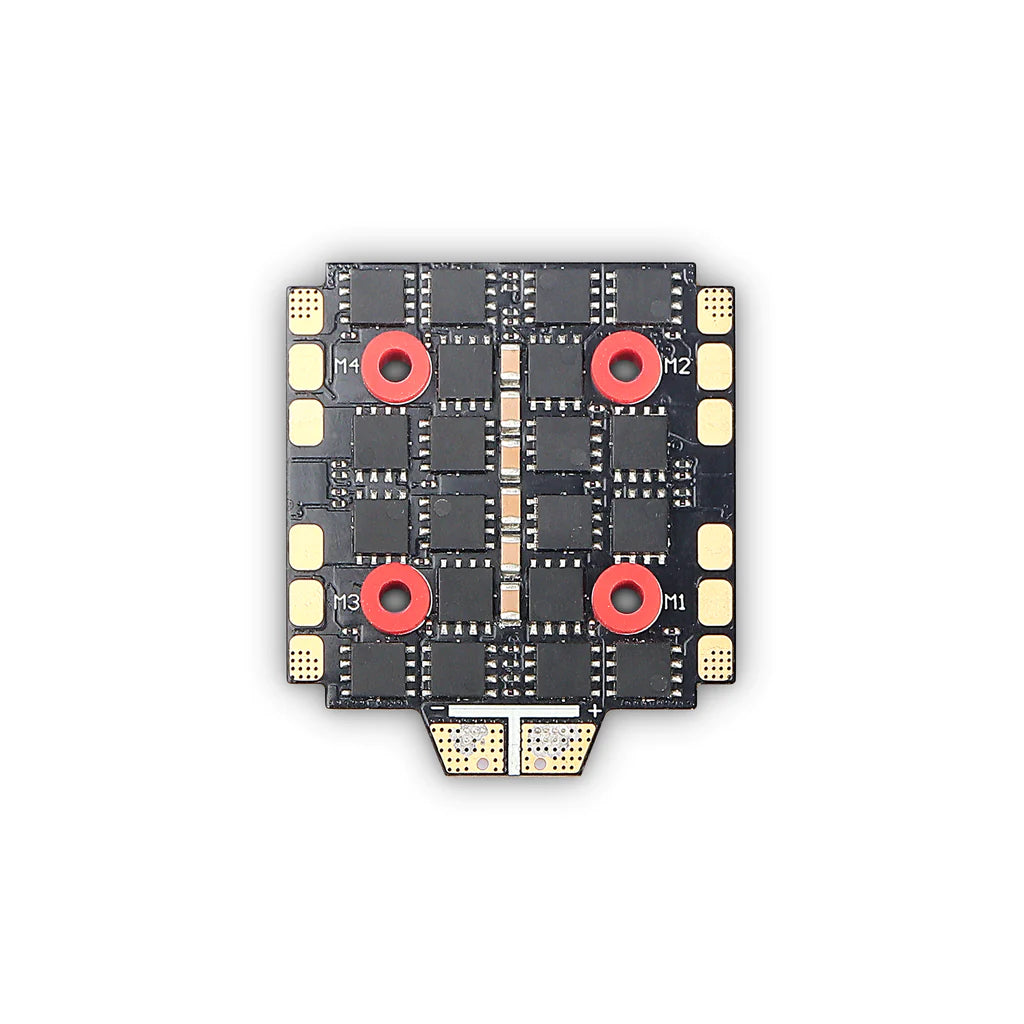

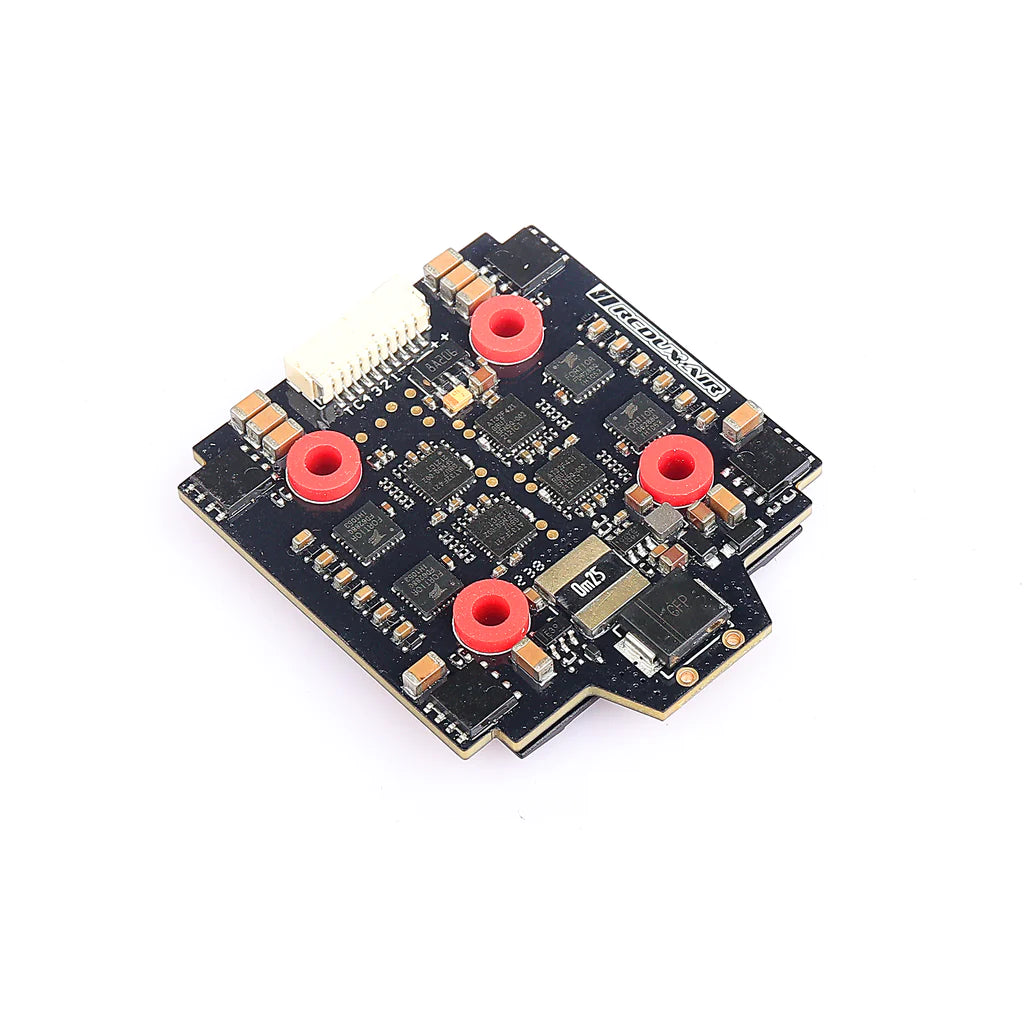

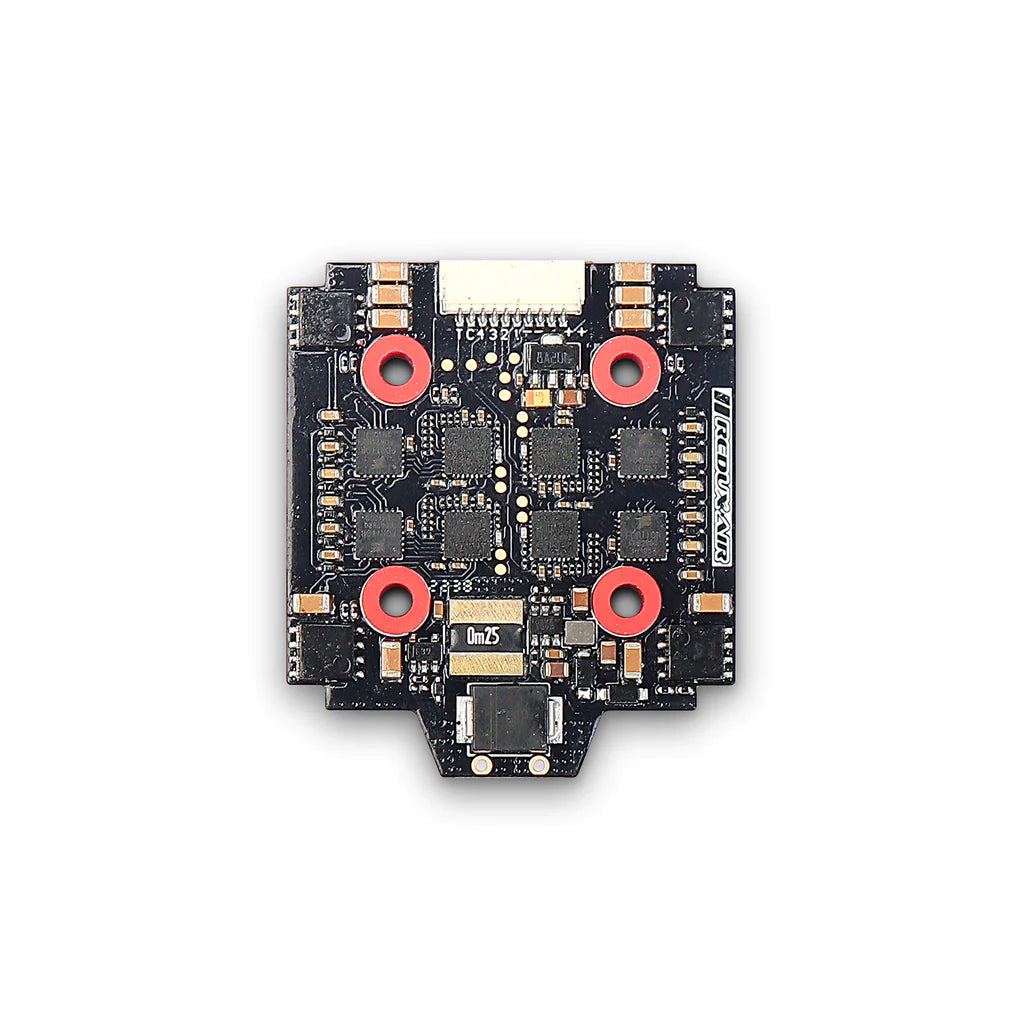

Redux PRO F4 70A 128KHZ 3S–8S 20X20 ESC

Redux32 PRO F4 60A 128KHz 20x20 ESC has inherited all the best from the “OG Redux32” as Amari calls it, the first version of the Redux32 Nano, the Redux32 Nano V2, feedback from pilots, feedback from ESC manufacturers and packed it into one small board.

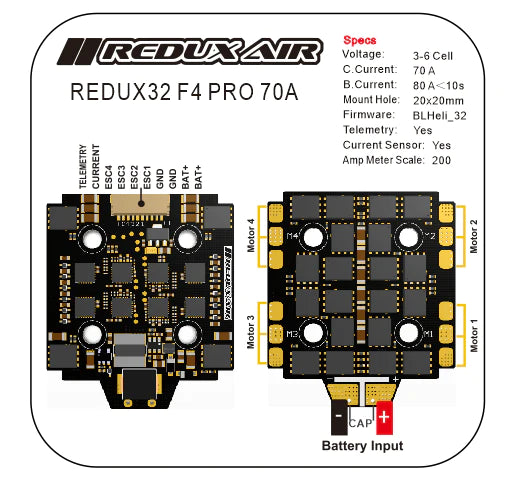

SPECIFICATION:

• Current: 70A
• Peak: >80A 10S
• Mounting: 20x20
• Mounting Hole: M4 —> M3 (with grommets)
• MOSFETs: 5x6 (FULL-SIZE)
• PWM Frequency: up to 128KHz
• Protocol: BLHeli_32
