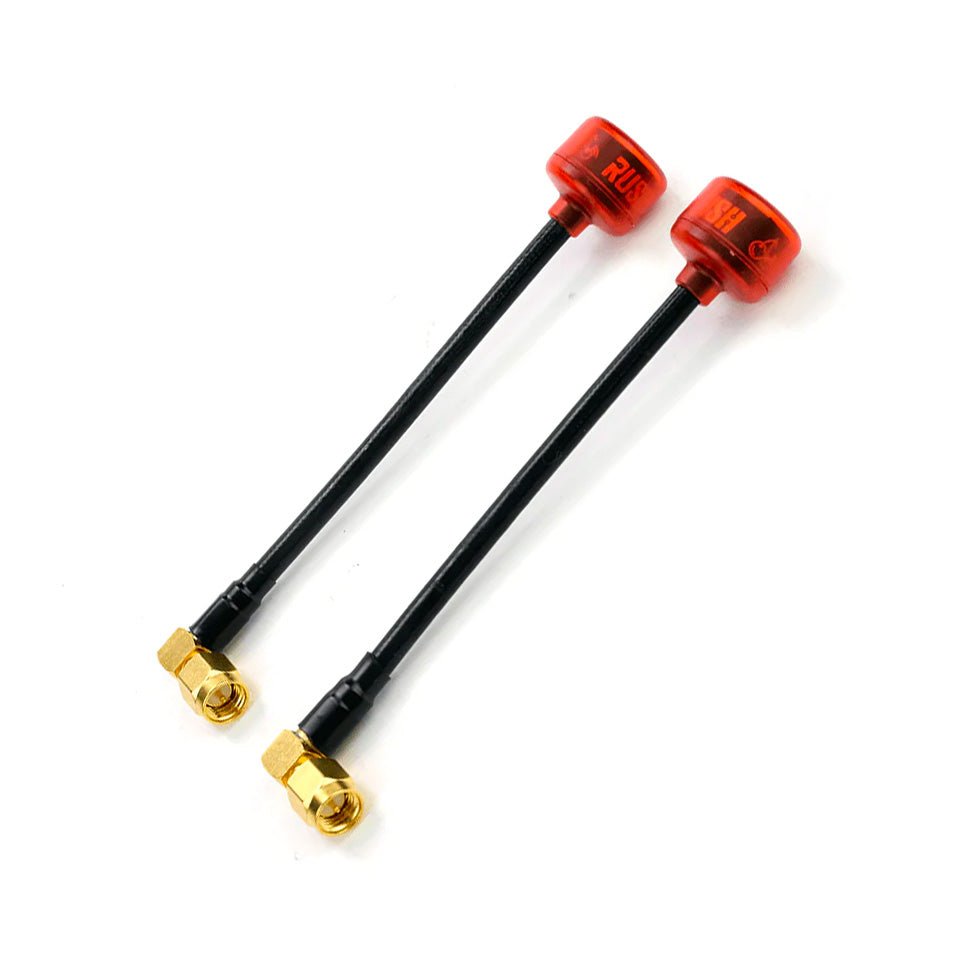

RUSHFPV Cherry 5.8GHz Antenna w/ Extended Length SMA 90-Degree Angle Connector (2 Pack) - Choose Polarization

RUSHFPV Cherry 5.8GHz Antenna w/ Extended Length SMA 90-Degree Angle Connector (2 Pack) - Choose Polarization

Regular price $14.88 USD
Regular price Sale price $14.88 USD
Sale Sold out
Polarization

This antenna is designed specifically for FPV drones with the need for a little more length in your antenna wire, offering a wide 5.6-6GHz bandwidth that covers all channels of the raceband with consistent transmission strength. It also provides a perfect circular polarization axis ratio, reducing screen flicker caused by multipath interference.

The Rush FPV Cherry antenna is made to be small and sturdy, with a flexible tube that can withstand impact and angle bends to prevent cable damage. It uses a thin Teflon skin, double-shielded coaxial cable with a silver-plated core that is soft, flexible, and has low signal loss. Additionally, it has a VSWR below 1.2 between 5650 and 5950MHz, ensuring transmission efficiency of up to 98% and reducing VTX heat.

Installation is quick and easy. Quality assurance is guaranteed, as each antenna is tuned for performance by the Rush FPV Professional Microwave Laboratory and qualified by a network analyzer before leaving the factory.

SPECIFICATIONS:

  • Gain: 1.2dBi
  • S11 SWR: 1.4 max - 1.1 min
  • Band Width: 5600-6000-MHz
  • Axial Ratio: Around 1.0
  • Length: ~155mm
  • Polarization: LHCP or RHCP
  • Designed by TrueRC
  • Manufactured by Lumenier
  • Connector: SMA 90-Degree

INCLUDES:

  • 2 x Rush FPV Cherry 5.8GHz  Extended Edition SMA 90-Degree Connector Antenna
  • Mounts and Screws
