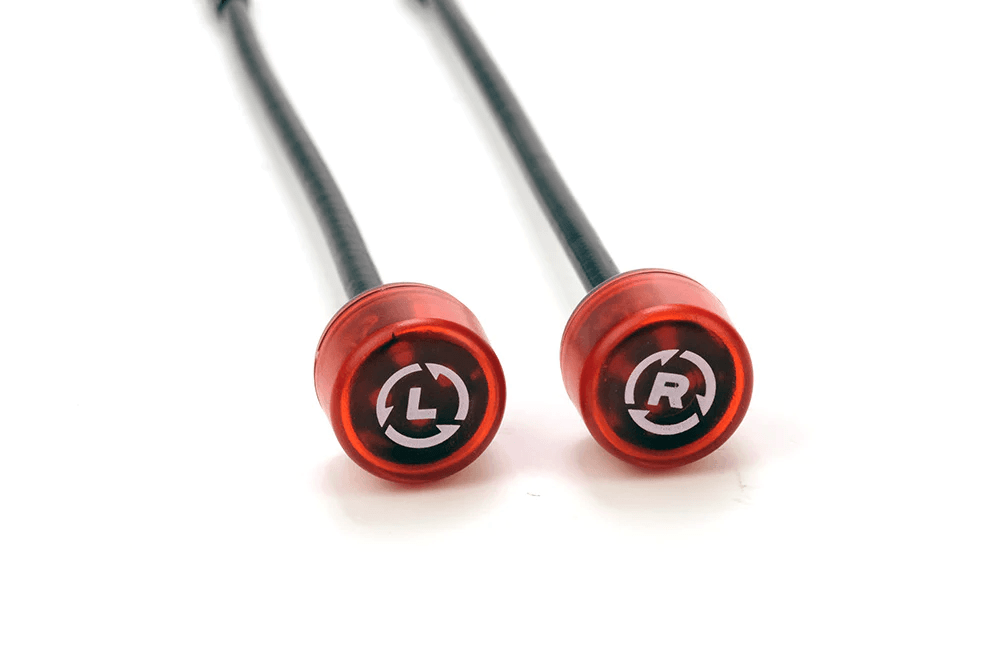

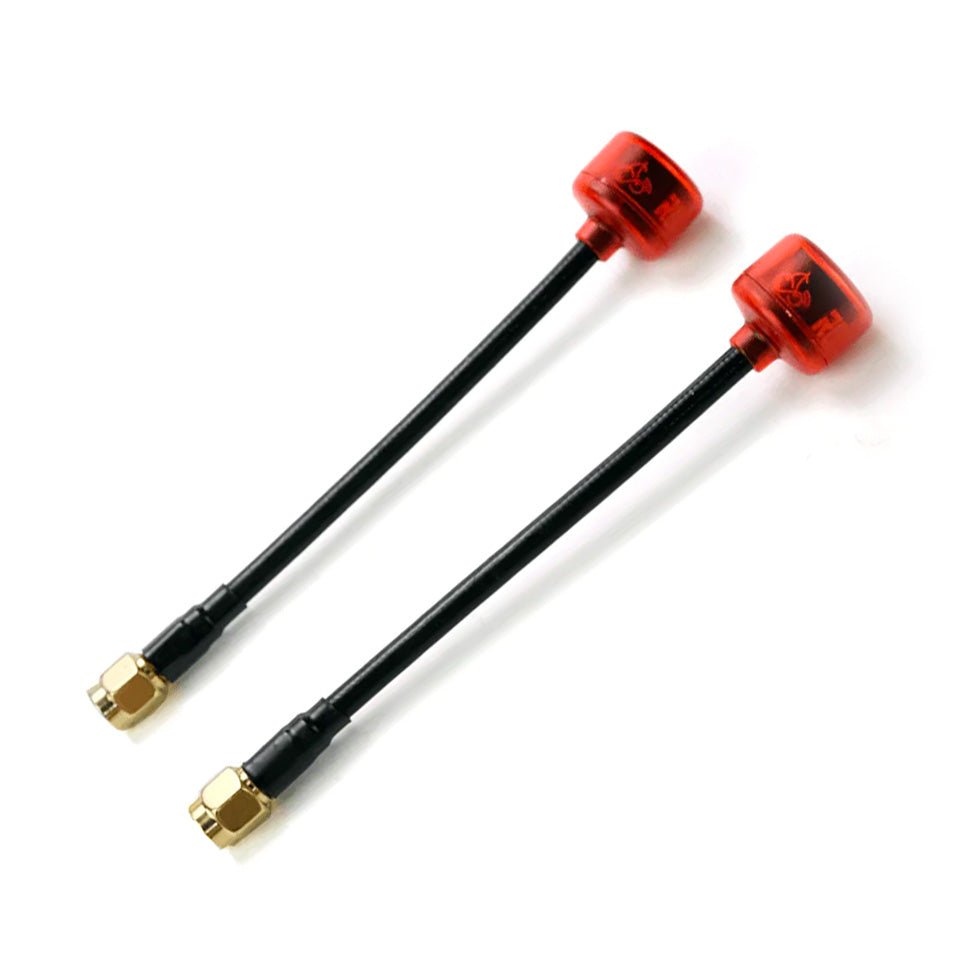

RUSHFPV Cherry 5.8GHz Antenna w/ Extended Length / SMA Straight Connector (2 Pack) - Choose Polarization
RUSHFPV Cherry 5.8GHz Antenna w/ Extended Length / SMA Straight Connector (2 Pack) - Choose Polarization
This antenna is designed specifically for FPV drones with the need for a little more length in your antenna wire, offering a wide 5.6-6GHz bandwidth that covers all channels of the raceband with consistent transmission strength. It also provides a perfect circular polarization axis ratio, reducing screen flicker caused by multi-path interference.
The Rush FPV Cherry antenna is made to be small and sturdy, with a flexible tube that can withstand impact and angle bends to prevent cable damage. It uses a thin Teflon skin, double shielded coaxial cable with a silver-plated core that is soft, flexible, and has low signal loss. Additionally, it has a VSWR below 1.2 between 5650 and 5950MHz, ensuring transmission efficiency of up to 98% and reducing VTX heat.
Installation is quick and easy. Quality assurance is guaranteed, as each antenna is tuned for performance by the Rush FPV Professional Microwave Laboratory and qualified by a network analyzer before leaving the factory.
SPECIFICATIONS:
- Gain: 1.2dBi
- S11 SWR: 1.4 max - 1.1 min
- Band Width: 5600-6000-MHz
- Axial Ratio: Around 1.0
- Length: ~120mm
- Polarization: LHCP or RHCP
- Designed by TrueRC
- Manufactured by Lumenier

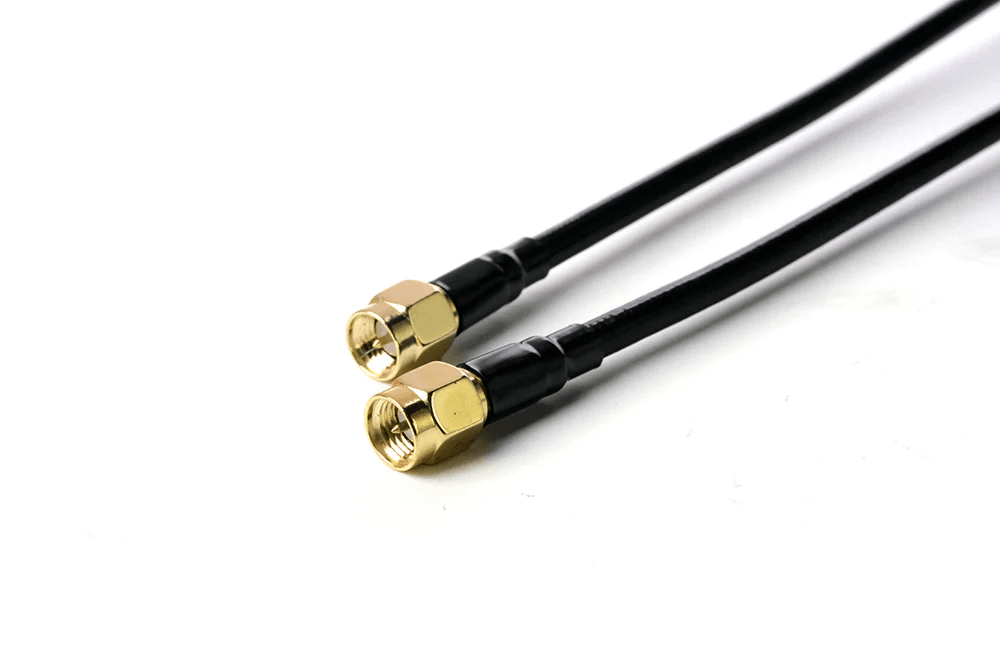

- Connector: SMA Straight
INCLUDES:
- 2 x Rush FPV Cherry 5.8GHz Extended Edition SMA Straight Connector Antenna
- Mounts and Screws
