TBS Lucid stack AM32 (Pro/Freestyle)

$114.99 USD

Sale Sold out

Shipping calculated at checkout.

Pro/Freestyle FC + AM32 ESC · fits OZR-5X

Gyro

MPU6000 ICM-42688P

Low stock: 1 left

OZR-5X TBS Mid Plate was specifically designed to fit TBS Lucid stack.

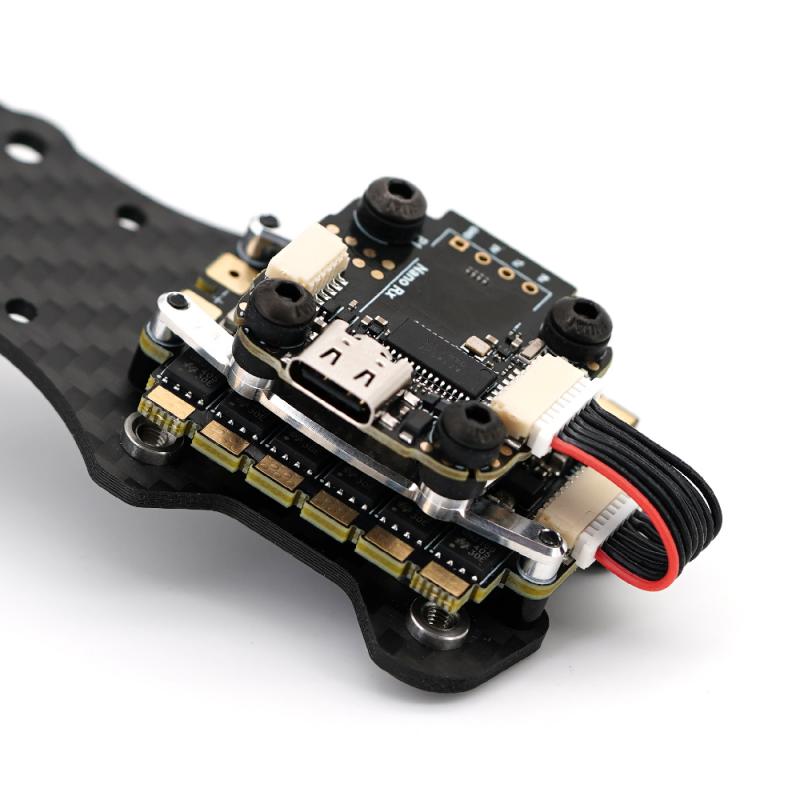

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

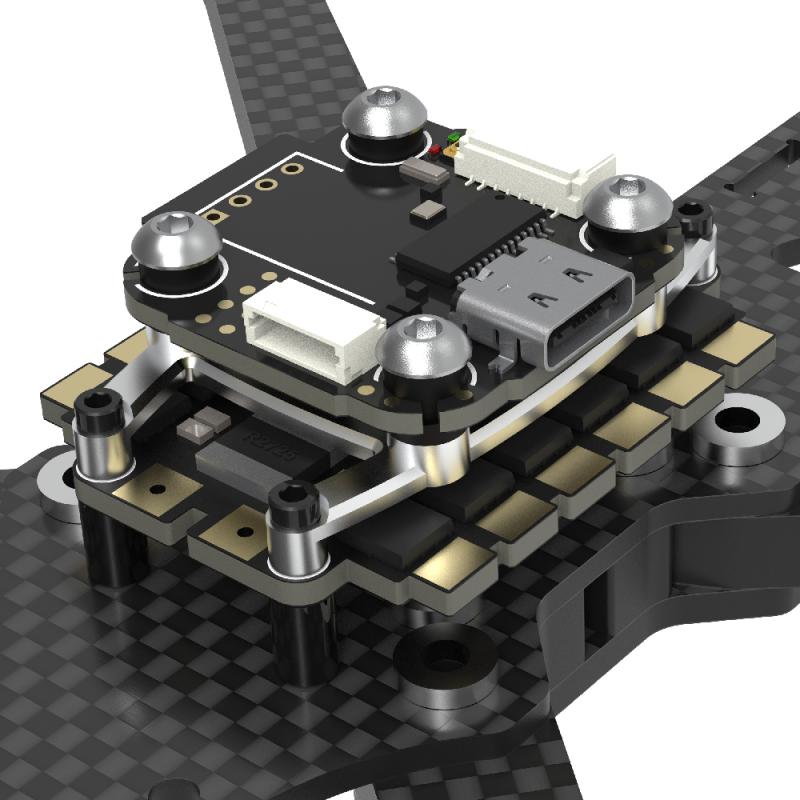

At the heart of the TBS Lucid flight stack is the latest generation AT32 microprocessors, and the innovative bracket mounting solution to achieve compatibility for both 30.5 x 30.5mm as well as 20 x 20mm mounting patterns. Through some clever engineering, it is perhaps the only stack that is compatible with quads of all kinds and sizes: anything between 3” and 8” propellers, 3S - 6S, with the most common mounting patterns, compatible with any digital or analog video system.

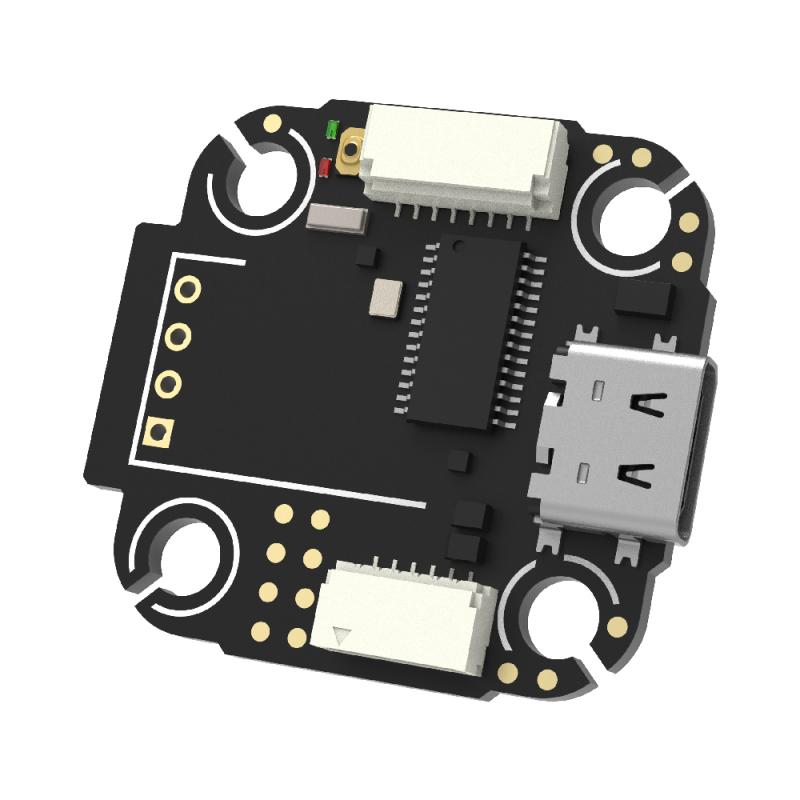

FLIGHT CONTROLLER SPECIFICATIONS

MCU	AT32F435RMT7, 288MHz
Gyro	MPU-6000 / IICM-42688P
Motors	4 motors, with telemetry and current sensor
BEC	9V, 2.5A. 5V 2A
OSD	AT7456E
Blackbox	8M
UARTs	6 (UART1/UART3/UART4/UART5/UART7/UART8)
Input	3S-6S
Size:	31mm*29mm
Mounting	20mm*20mm
Weight	4.51g

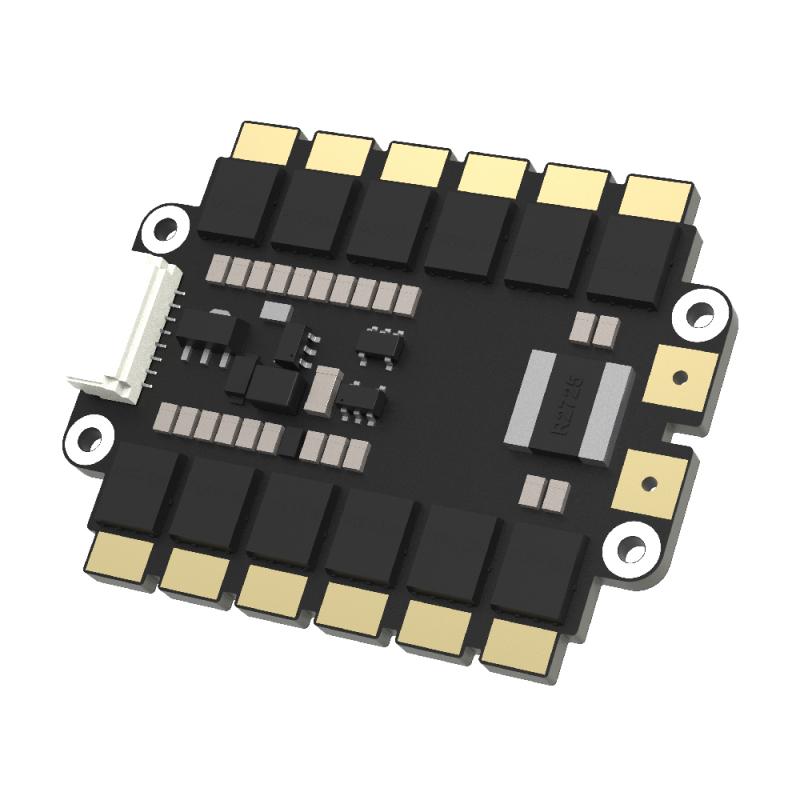

ESC SPECIFICATIONS

ESC software:	AlkaMotors32 (AM32)
ESC target:	tbslu6s4in1
Rated current:	60A x 4, 300 seconds
Peak Current:	70A x 4, 60 seconds
Propellers:	Up to 9", over 7" requires good airflow
Input:	3-6S Lipo
Protocol:	Bi-directional Dshot 300/600), KISS ESC Telemetry
ESC Current port:	Yes
BEC:	No
Size:	34mm*44mm
Mounting:	Gorilla-mount (39.5 x 16.0mm) or brackets for 20x20 mm, 30.5x30.5 mm
Weight:	13.81g, 19g incl. brackets

GORILLA MOUNT

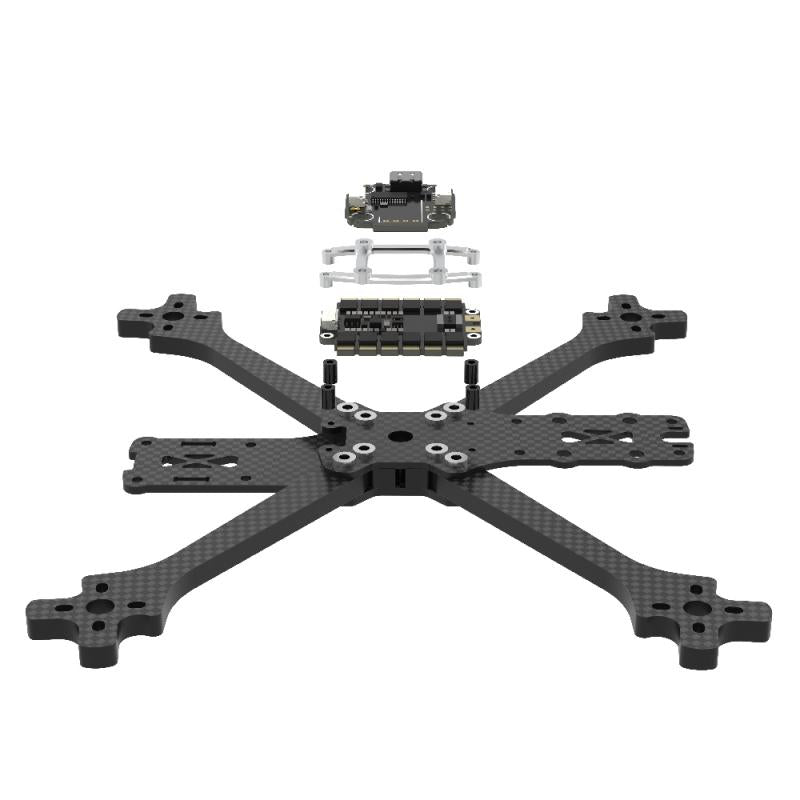

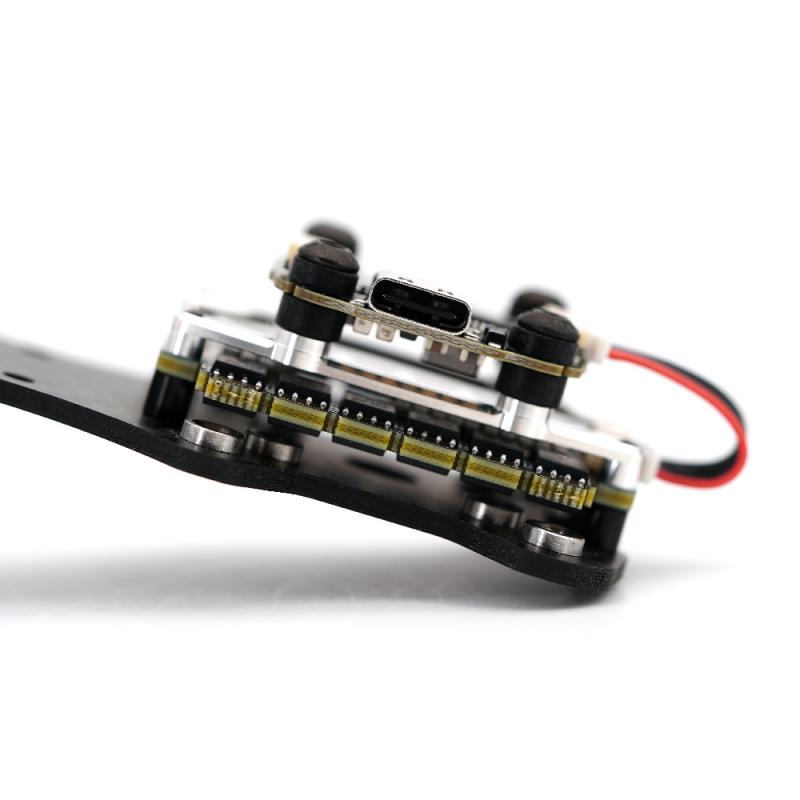

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the "Gorilla" mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
