BetaFPV C03 Micro 1200TVL CMOS 4:3 NTSC FPV Camera (w/ White 2022 Canopy)
BetaFPV C03 Micro 1200TVL CMOS 4:3 NTSC FPV Camera (w/ White 2022 Canopy)
Couldn't load pickup availability
Out of stock

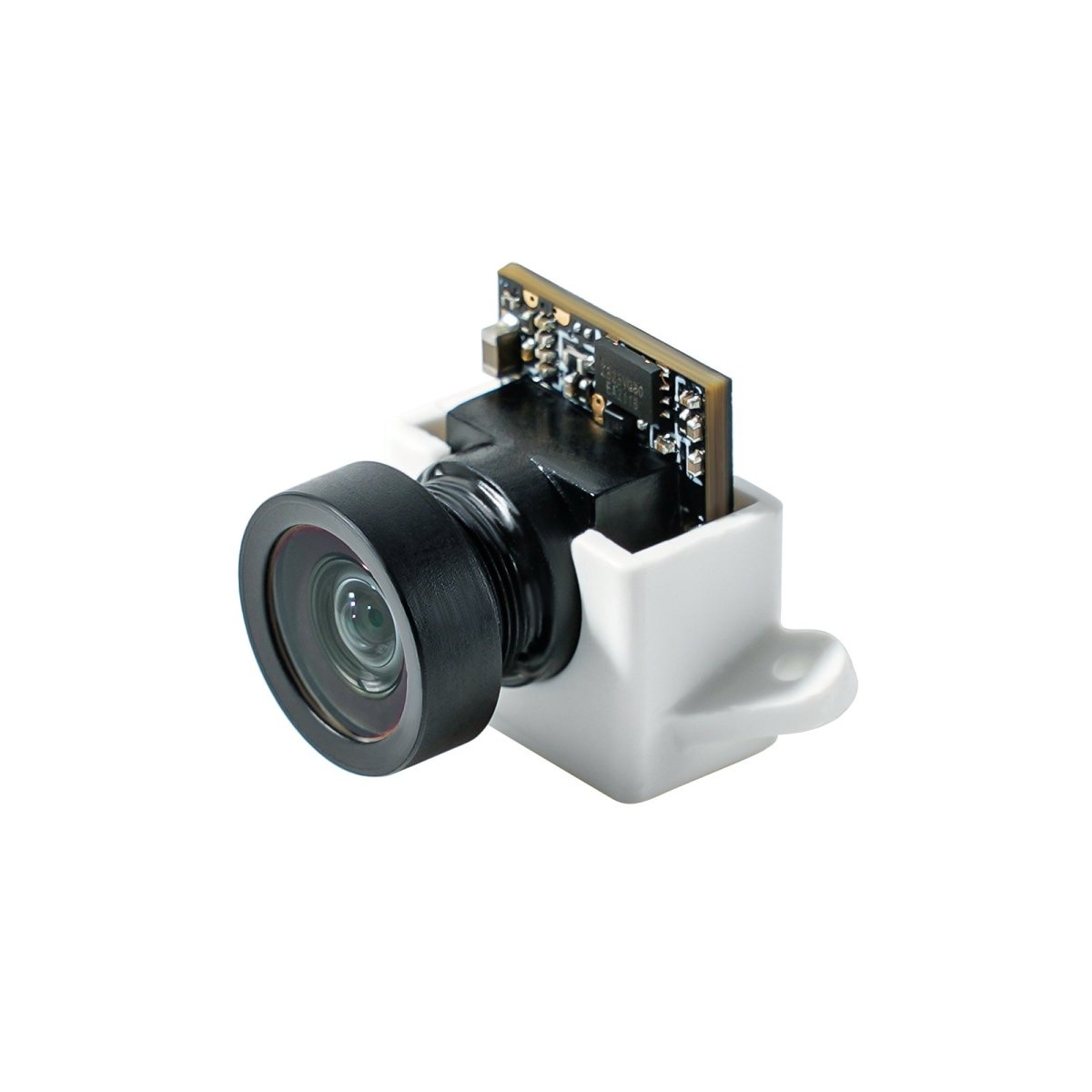

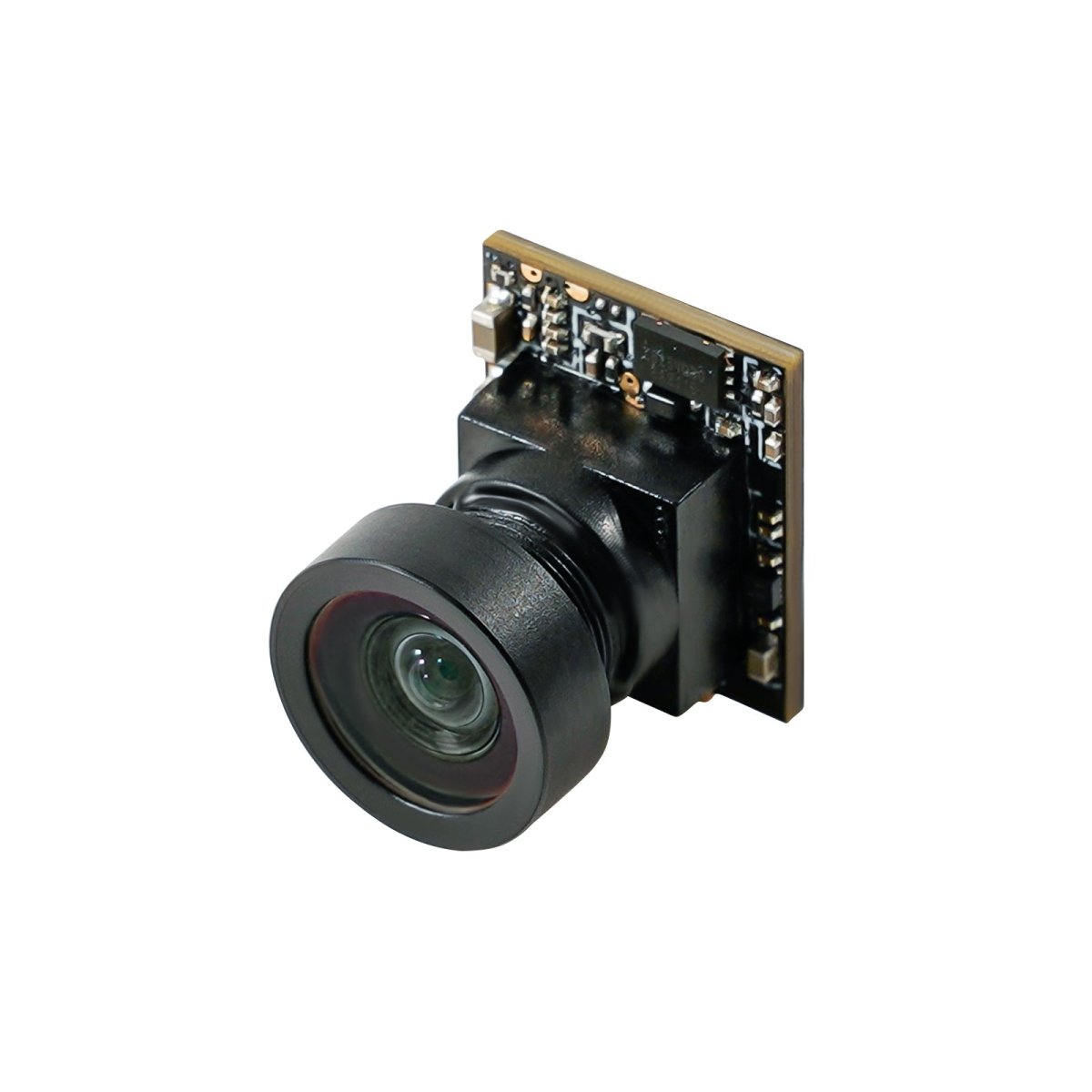

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.
Features

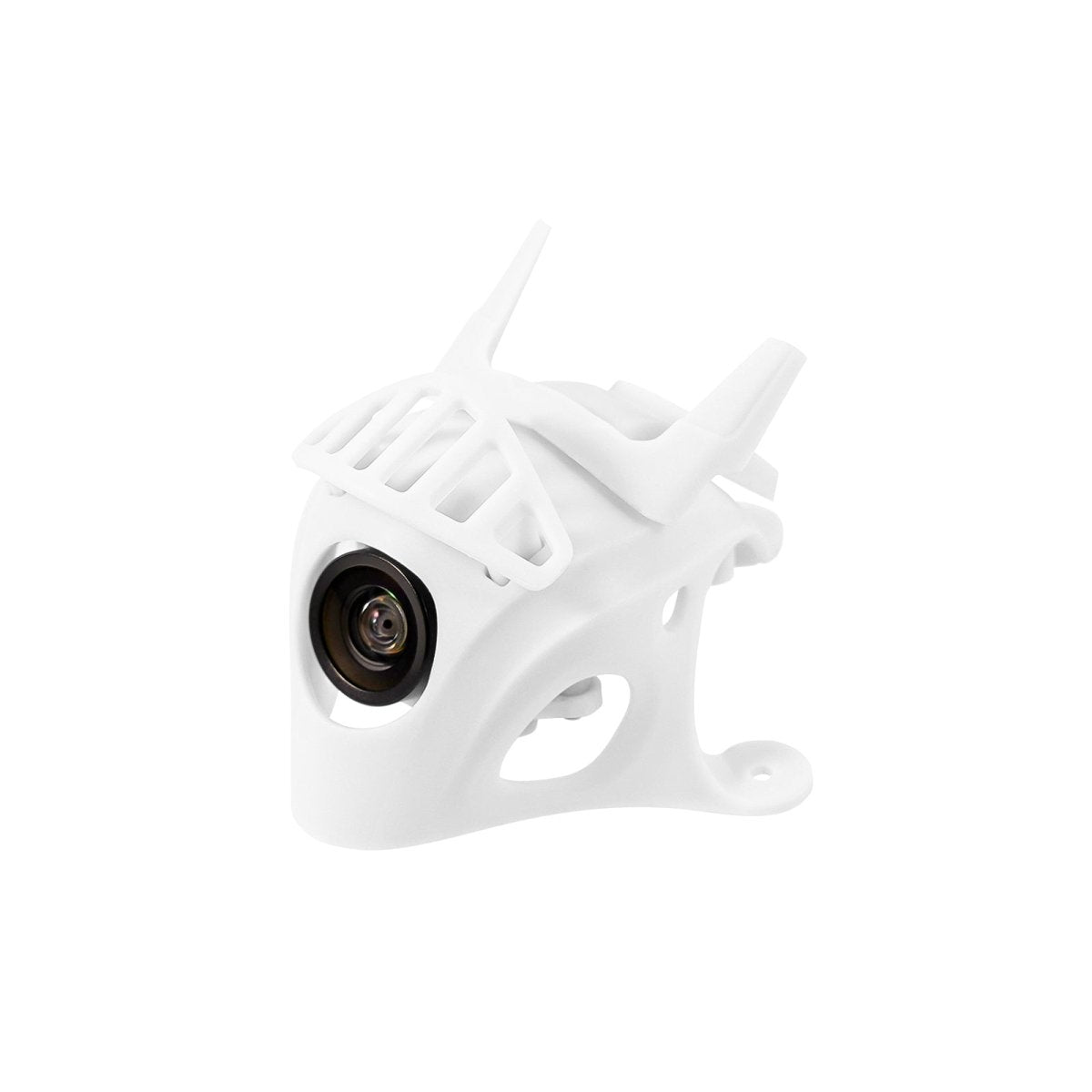

- Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.
- Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.

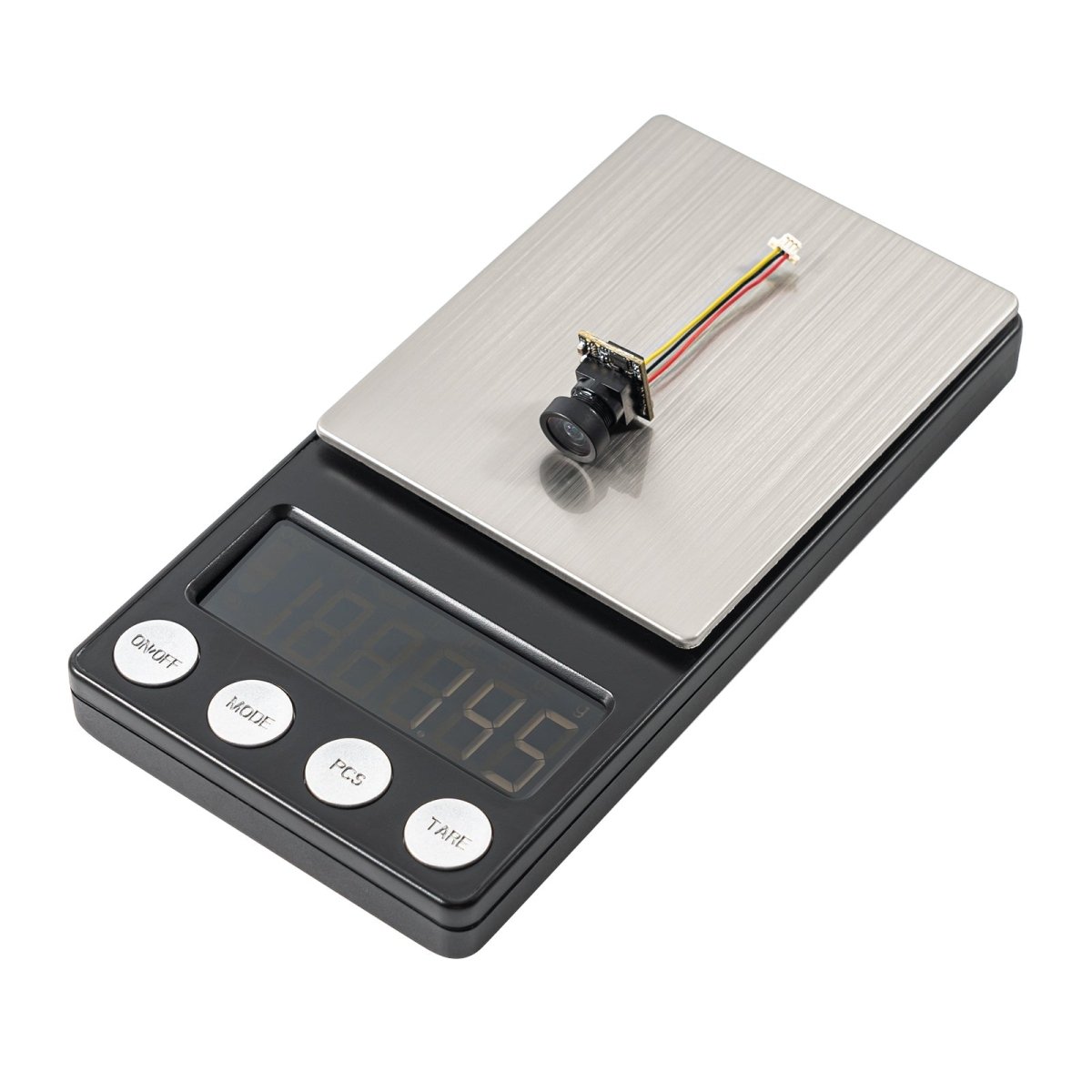

- Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.
- 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
- Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition

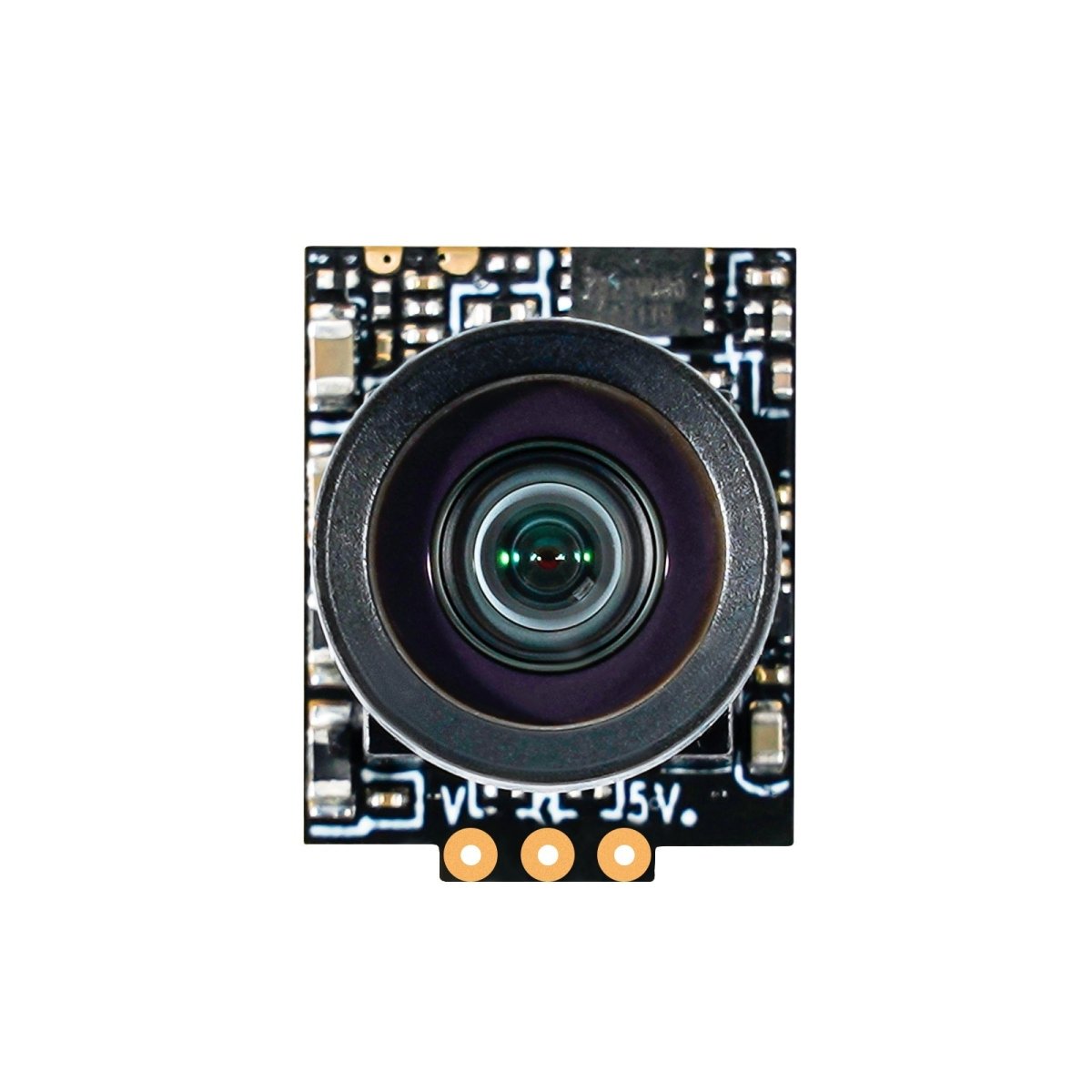

- 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.
Specification
- Item: C03 FPV Micro Camera
- Image Sensor: 1/3" CMOS Sensor
- Horizontal: 1200TVL with Global WDR
- Signal System: NTSC (4:3)
- Lens : 2.1mm(M7) FOV 160°
- S/N Ratio: >50db
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 100mA@5V / 120mA@3.3V
- Housing Material: ABS
- Dimension: 11*14.1*13.5mm
- Net weight: 1.45g
Plug-N-Play Connector

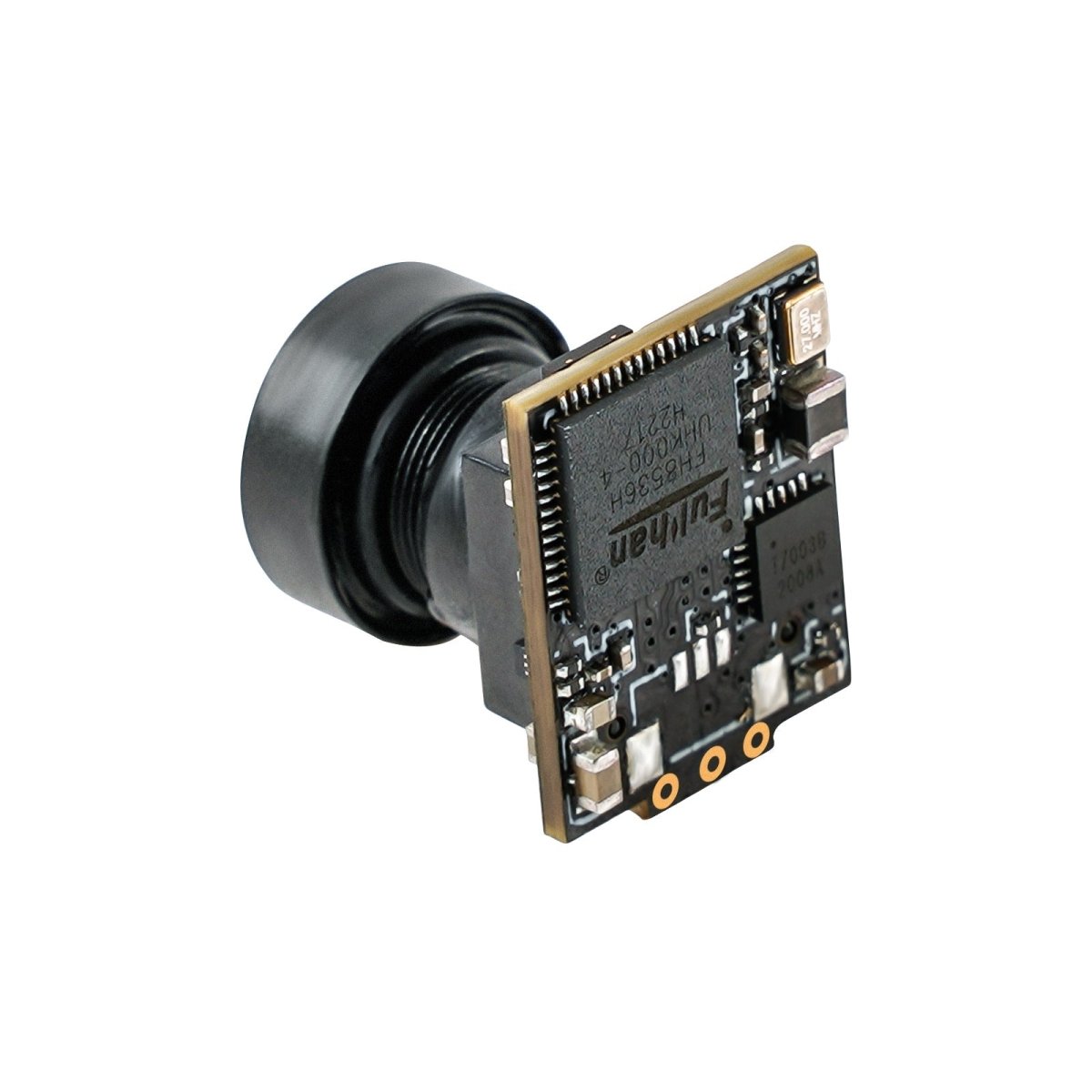

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.
Recommend Parts
- Canopy: BETAFPV Canopy for Micro Camera 2022
- VTX: BETAFPV M03 5.8G VTX
- FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
- Drones: Meteor65/75 drones, or other micro whoop drones in the market.
Package
- 1 * C03 FPV Micro Camera
- 1 * BETAFPV Micro Canopy
- 1 * 20° Lens Camera Mount for C02
- 1 * 20° Lens Camera Mount for C03
- 1 * 30° Lens Camera Mount for C03
- 3 * Decorative Parts
- 4 * M1.4*5 Screws (Sliver)
- 6 * M1.4*4 Screws (Black)
