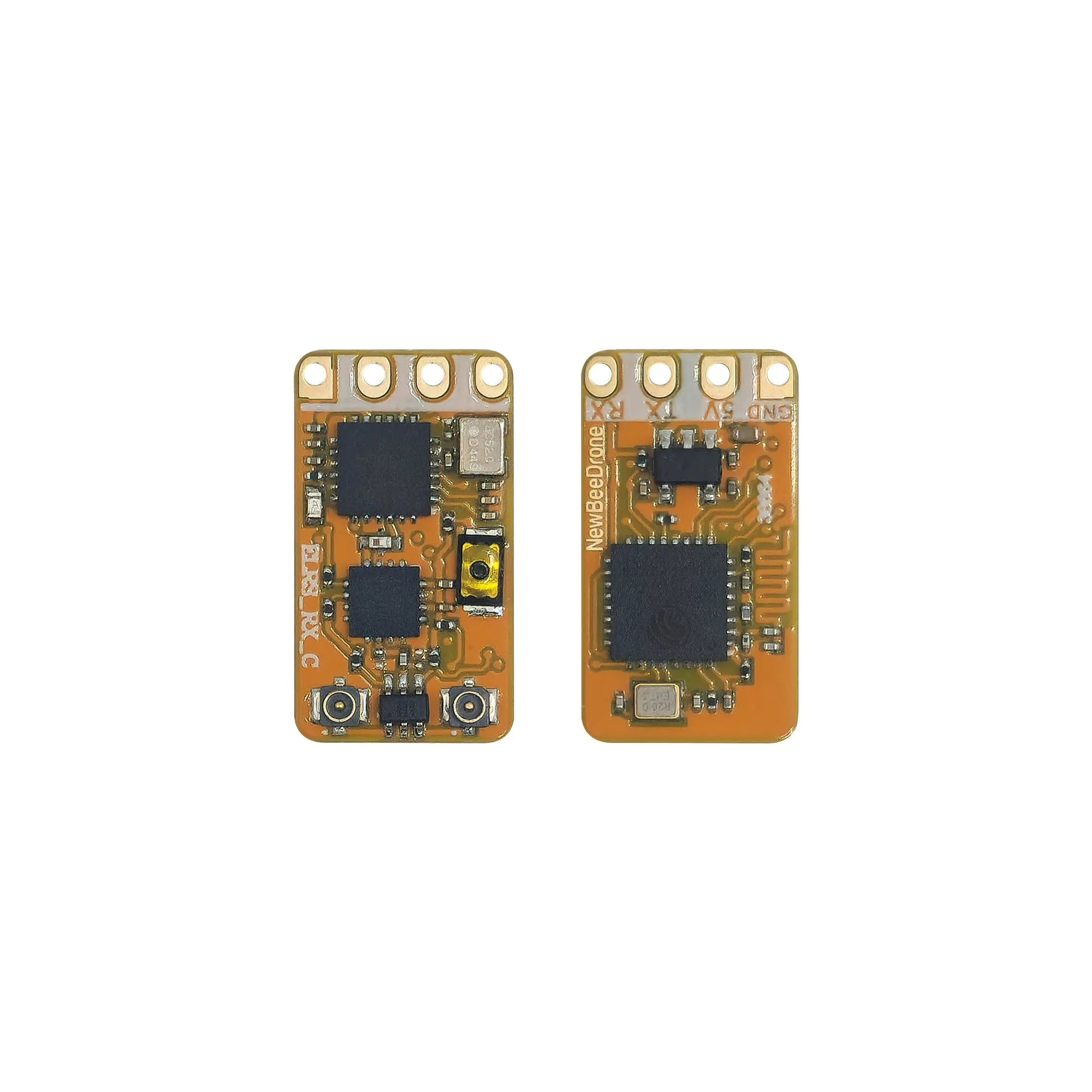

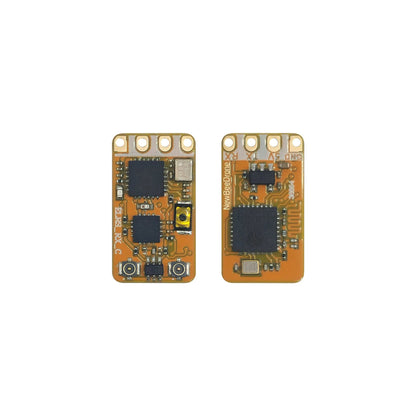

NewBeeDrone BeeCeiver ELRS 2.4Ghz Diversity with TCXO Oscillator Micro Receiver
Discover the NewBeeDrone BeeCeiver ExpressLRS 2.4Ghz Diversity Micro Receiver, a marvel in compact and efficient design. Equipped with the industry-leading TCXO (temperature-compensated crystal oscillator), this micro receiver ensures unmatched signal stability and precision for an elevated flight experience.
Despite its smaller size, the BeeCeiver does not compromise on performance. It utilizes ExpressLRS 2.4ghz open-source firmware for a responsive and extended range, supported by the ESP8285 MCU and SX1280IMLTRT RF Chip with Skyworks RFX2401C PA LNA. This powerful combination delivers a reliable and far-reaching RF link, enhancing control and connectivity.
Ease of use is at the forefront of the BeeCeiver's design. Quick and simple binding, coupled with convenient in-craft WiFi firmware updates, makes setup and maintenance hassle-free. It's designed to integrate effortlessly into any drone setup, prioritizing both functionality and user experience.
In essence, the NewBeeDrone BeeCeiver is not just an addition to your drone - it's a significant upgrade, pushing the boundaries of what you can achieve in the sky. Compact, powerful, and user-friendly, it sets a new standard in drone receiver technology.
Specification:
- Type: ISM
- MCU: ESP8285
- RF Chip: SX1280
- Telemetry RF power: 20dbm
- Antenna: 60mm 2.4ghz x2 or T-Antenna IPEX3 x 2
- Frequency Range: 2.404 - 2.479 Ghz
- Working voltage: 4.5-5.5v
- Weight: 1.6g (Including two antenna)

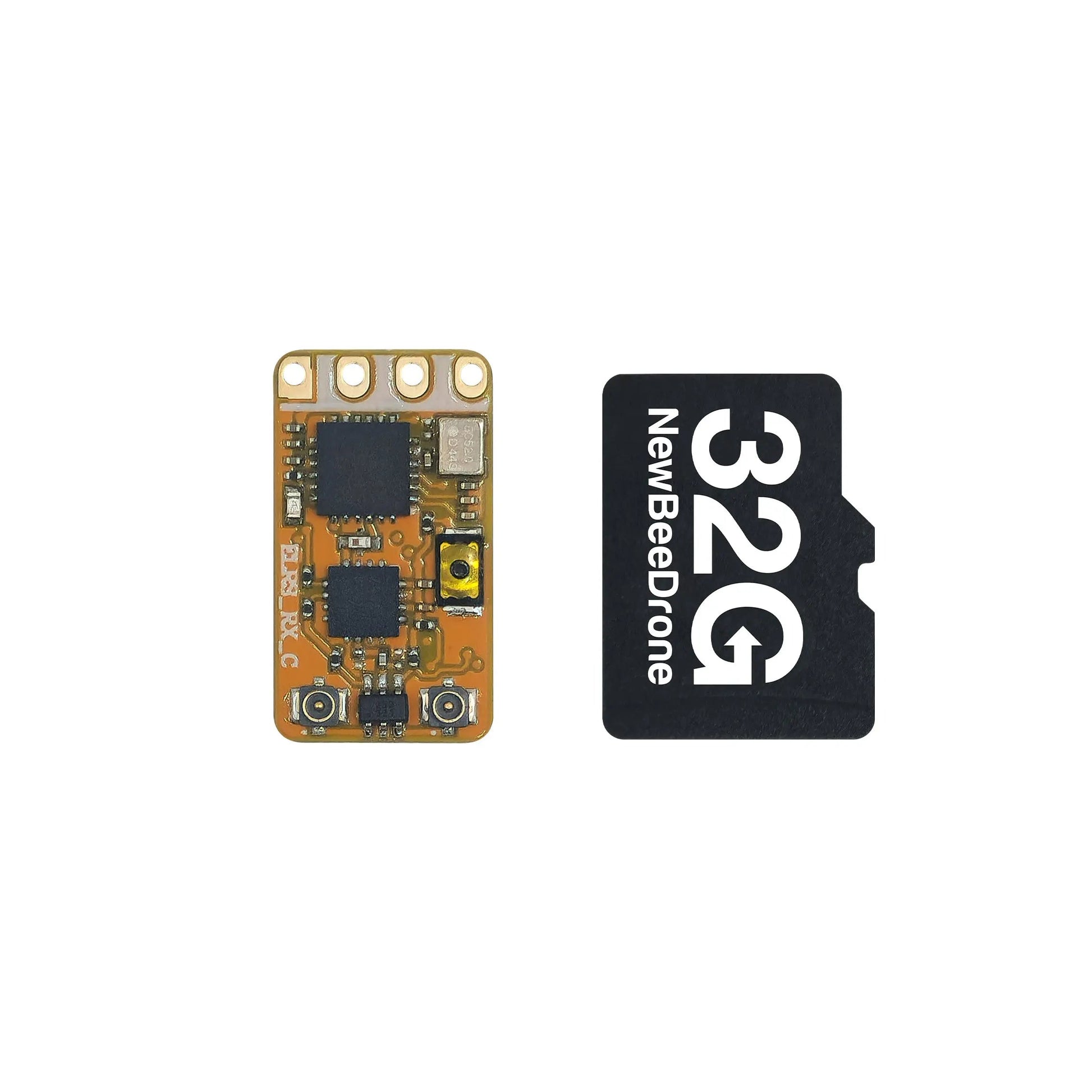

- Dimension: 17mm*9.5mm*3mm
- Firmware Version: ExpressLRS v3.x
- FW Target: NewBeeDrone Diversity 2.4Ghz RX
- Bus interface: CRSF
- Extend Interface：UART
- TCXO Oscillator
Include:
1x NewBeeDrone BeeCeiver ExpressLRS 2.4Ghz Diversity with TCXO Oscillator Micro Receiver

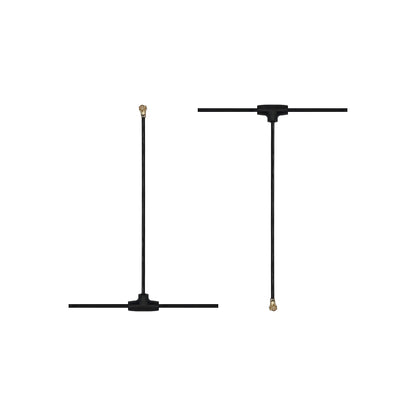

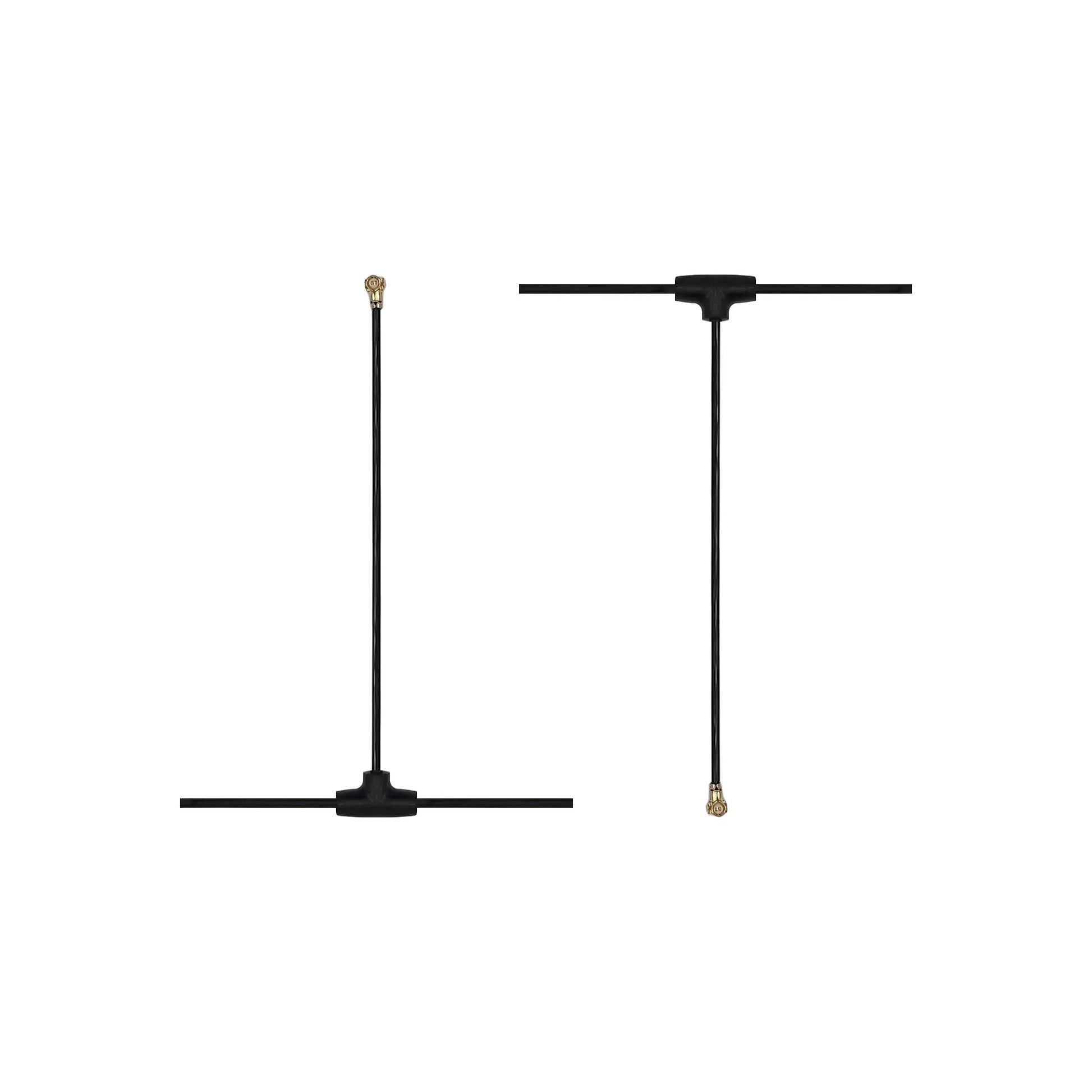

2x NewBeeDrone BeeT-Antenna

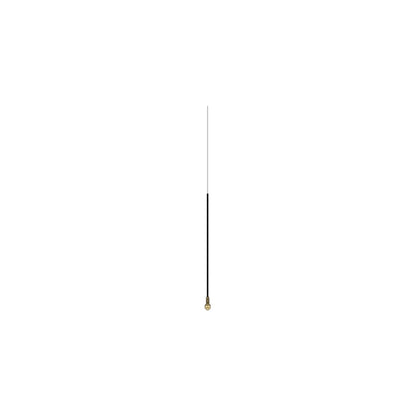

2x NewBeeDrone 2.4G Replacement Receiver Antennas 60mm

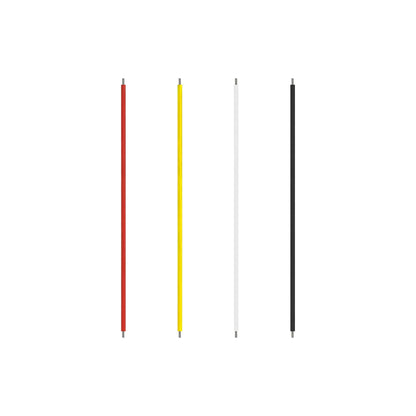

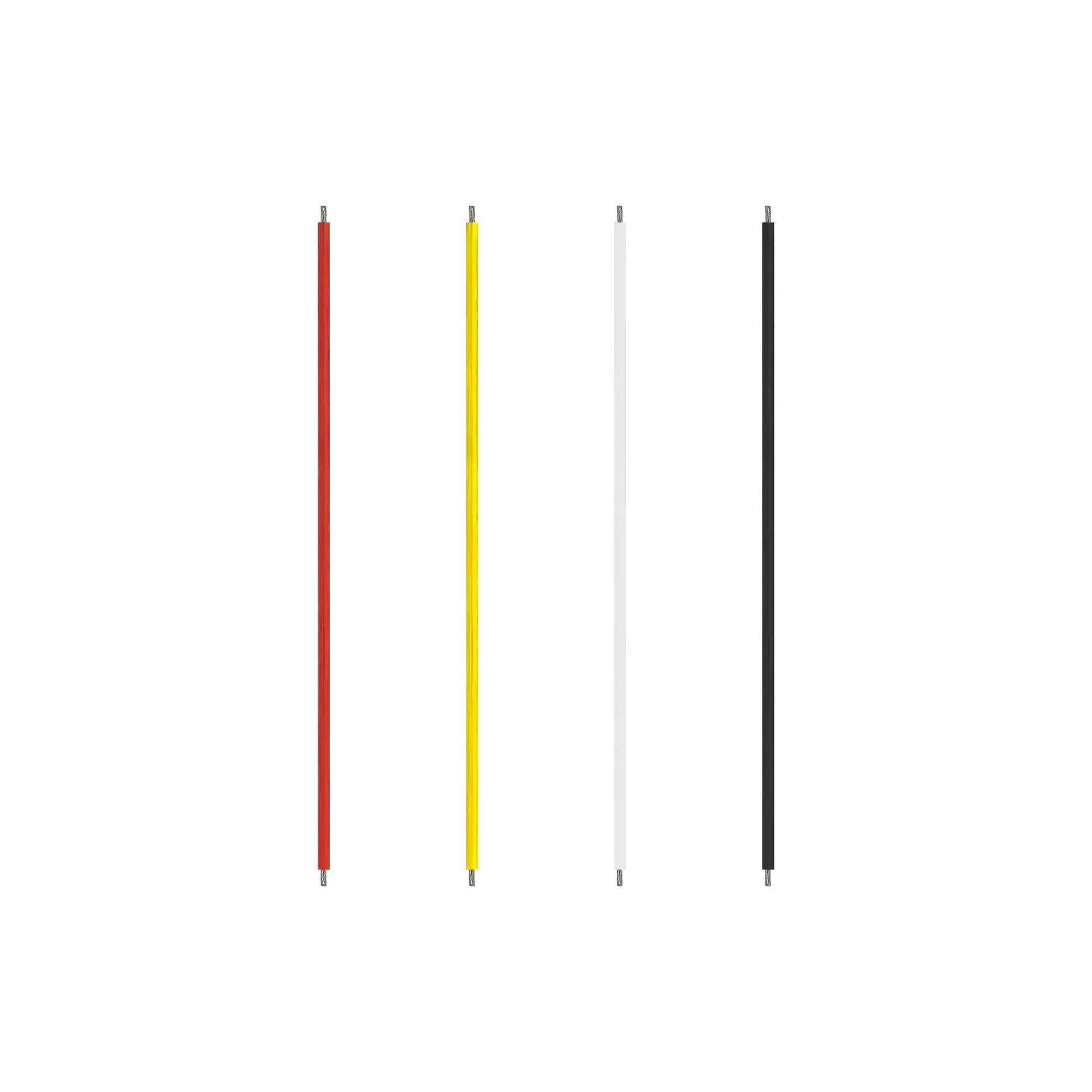

4x Silicone wire

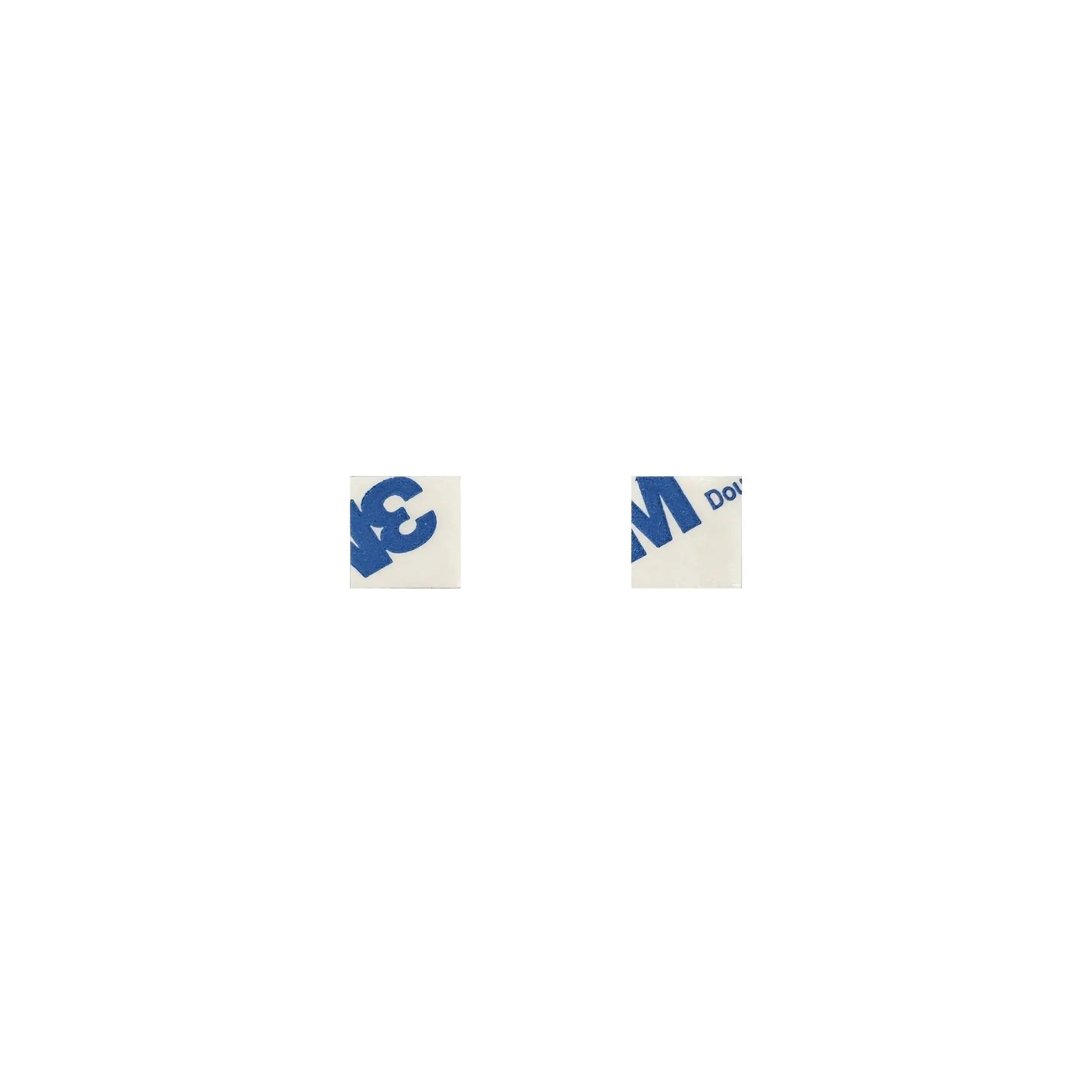

2x 3M double side tape
Binding:
Power on 3-times will trigger the receiver get into binding mode.
Firmware:
ExpressLRS web-flasher
Under NewBeeDrone brand and the target name is
NewBeeDrone Diversity 2.4Ghz RX
